Description

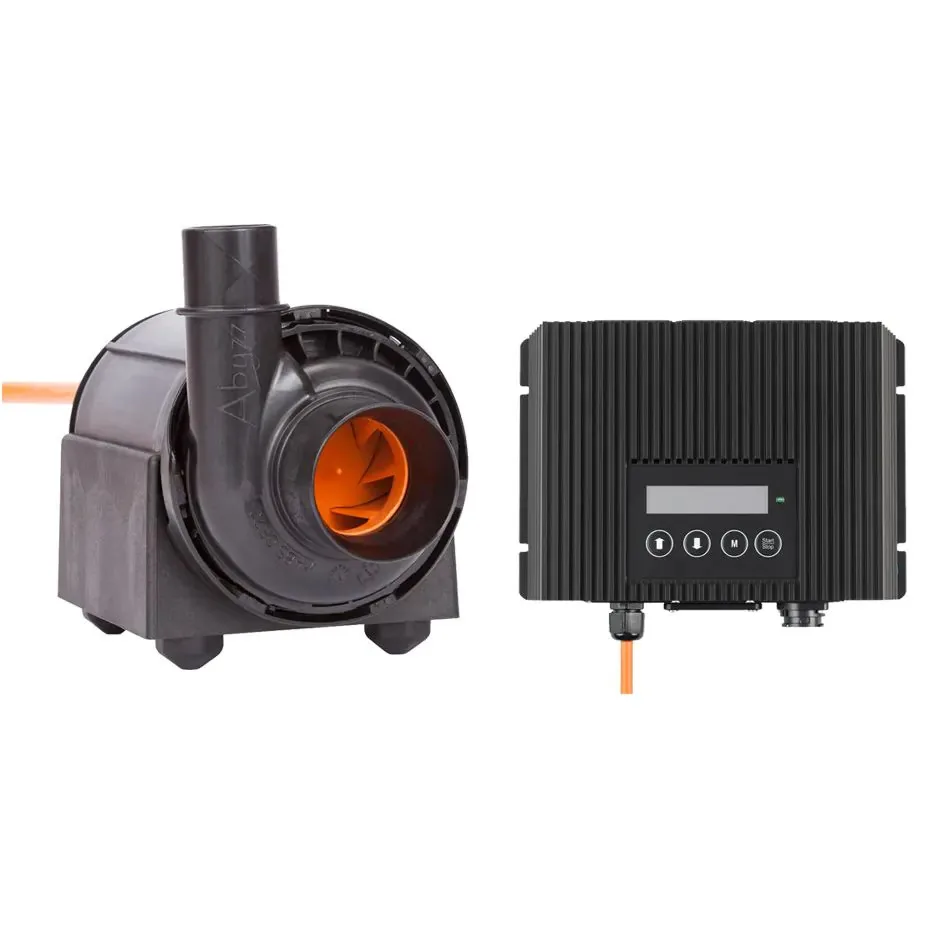

Abyzz A120 IPU 2,370GPH Controllable DC Pump
Compact Powerhouse: 2,370 GPH Meets Low-Voltage Efficiency
The compact Abyzz A120 pump is a low-voltage model measuring only 109x155mm (4.3“x6.1″), including its feet. It efficiently returns water from a basement sump to an upstairs tank. Its safety design, with a maximum of 12 volts at the motor connector, makes it ideal for environments with human or animal contact. The high-quality power supply complies with top medical standards for insulation, ensuring safety.
Pump Specifications:
Maximum Flow Rate: 9000 lph (2,370 GPH)
Rated Flow Rate: 7600 lph
Delivery Height: 6m (19.7ft)
Maximum Discharge Speed: 5.8m/s
Power Consumption: 4-120W
Operating Voltage: 240V~
Operating Frequency: 50-60V~
Maximum Operating Pressure: 1.2bar (17.4psi)
Maximum Immersion Depth: 2m
Pump Cable Length: 3m (9.8ft)
Inlet/Outlet Connections (metric): 40/25mm
IPU Driver Rating: IP65
10-year warranty
Applications:
Freshwater and Saltwater Aquariums
Ponds
Creeks
Pools
Spas
Hydroculture
Aquaculture
Whats Included:
Abyzz A120 pump
90V/240V driver
5ft power cable
Driver/Controller connecting cable: 9.8ft
Operating manual
This product was developed and is manufactured in Germany by Venotec.
WARRANTY & SUPPORT
Abyzz Pumps Limited Warranty
Thank you for choosing Abyzz Pumps. We are committed to providing you with high-quality products and exceptional customer support. To ensure you receive the full benefits of our product warranty, please read the following information carefully.
1. Warranty Coverage
Abyzz Pumps (motor block and driver ONLY) are backed by a 10-year limited warranty, which covers defects in material and workmanship under normal use and maintenance. This warranty provides repair or replacement of the defective motor block and driver ONLY at Abyzz’s discretion.
