Description
The Ultimate Compact Reef or Freshwater Setup
Discover the simplicity and brilliance of the Waterbox AIO 35.2 (All-In-One) aquarium. Designed for both the dedicated reef keeper and the passionate freshwater enthusiast, the AIO 35.2 integrates high-performance filtration seamlessly into the tank’s back, delivering a clean, minimalist aesthetic without compromising on water quality or performance.
This system is the perfect choice for aquarists seeking a premium, yet manageable, 33-gallon display.
Key Features and Benefits
Integrated All-In-One Design: The filtration chambers, overflow, and return system are discreetly housed in the rear of the tank, eliminating the need for an external sump and plumbing, and maximizing your display space.
Ultra-Clear Glass Display: The tank is constructed with 8 mm Ultra-Clear Glass panels, ensuring maximum light transmission and a crystal-clear viewing experience of your aquatic environment. All panels are precision-bonded with high-strength silicone for exceptional durability and a watertight seal.
Complete Filtration Media Included: Get a head start on your water cycling with the included premium filtration package, featuring:
Filter Socks: To trap fine particulate matter, uneaten food, and organic waste, maintaining pristine water clarity.
Ceramic Rings: For a large surface area dedicated to crucial biological filtration.
Carbon Pellets: To chemically polish the water by removing impurities, odors, and discoloration.
Optimized Water Flow: The system includes an Adjustable Return Nozzle, allowing you to fine-tune the multidirectional water flow within the display to eliminate dead spots and ensure optimal circulation.
Stability and Protection: A stabilizing Leveling Mat is included to prevent pressure points and ensure the aquarium’s weight is spread evenly across your stand or surface.
Versatile Setup: Ideal for both Saltwater (Nano Reefs) and Freshwater (Planted Aquariums, Aquascapes) systems.

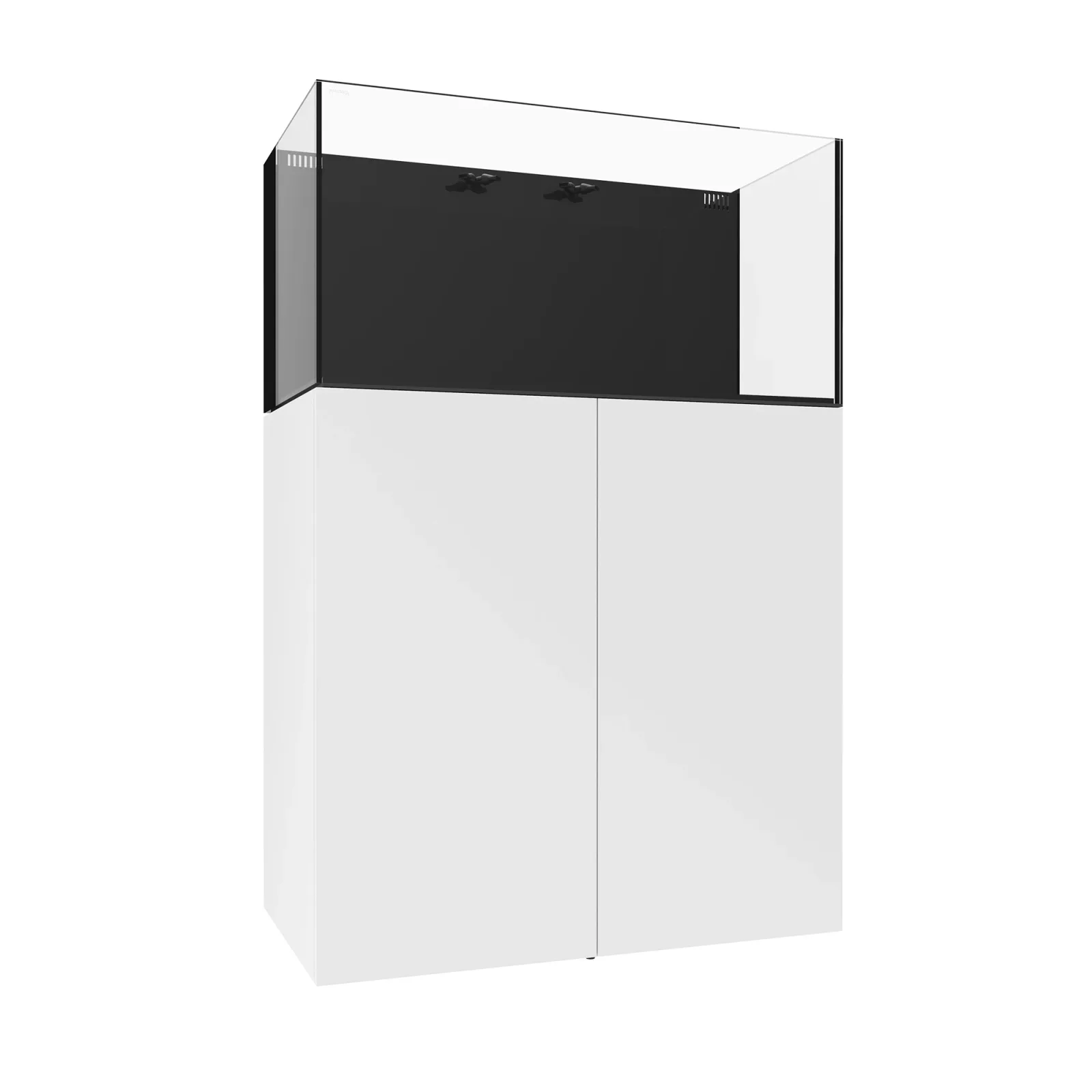

Optional Premium Cabinetry: Elevate your setup with an available sturdy cabinet (in White, Black, or Aspen finishes), featuring water-resistant laminated OSB and adjustable leveling feet for a perfectly balanced and professional appearance.
Peace of Mind: Backed by a comprehensive 3-Year Waterbox Warranty against defects in materials and workmanship.
Technical Specifications
Product ModelAIO 20 CubeAIO 25 PeninsulaAIO 35.2AIO 50.3AIO 65.4
Aquarium
Dimensions (LxWxW)
450 x 450 x 400mm
600 x 400 x 400mm
600 x 500 x 450mm
900 x 500 x 450mm
1,200 x 500 x 450mm
17.7″ × 17.7″ × 15.7″
23.6″ × 15.7″ × 15.7″
23.6″×19.7″×17.7″
35.4″×19.7″×17.7″
47.2″×19.7″×17.7″
Tank Volume
76 L
90 L
125 L
186 L
249 L
20.0 gals
23.7 gals
33 gals
49.1 gals
65.8 gals
Glass Thickness
6mm (1/4″)
6mm (1/4″)
8mm (5/16″)
10mm (2/5″)
10mm (2/5″)
Aquarium Weight
17.5 kg/39 lbs
21 kg/46 lbs
33 kg/73 lbs
52 kg/115 lbs
56 kg/123 lbs
Front & Sides
Ultra-clear Low Iron glass (front and sides)
Transmittance
91%
Filtration Compartment(Int. Dimensions)
438 x 80 x 387mm
388 x 80 x 387mm
584 x 120 x 435mm
880 x 120 x 433mm
1180 x 120 x 433mm
17.2″ × 3.1″ ×15.2″
15.3″ × 3.1″ × 15.2″
23″ × 4.7″ × 17.1″
34.6″ × 4.7″ × 17″
46.5″ × 4.7″ × 17″
Filter Sock Chamber(Int. Dimensions)
80 x 80 x 387mm
80 x 80 x 387mm
81 x 120 x 435mm
81 x 120 x 433mm
161 x 120 x 433mm
3.1″ × 3.1″ × 15.2″
3.1″ × 3.1″ × 15.2″
3.2″ × 4.7″ × 17.1″
3.2″ × 4.7″ × 17″
6.3″ × 4.7″ × 17″
Media/Skimmer Chamber(Int. Dimensions)
200 x 80 x 387mm
173 x 80 x 387mm
101 x 120 x 435mm
154 x 120 x 433mm
150 x 120 x 433mm
7.9″ × 3.1″ ×15.2″
6.8″ ×3.1″ × 15.2″
4″×4.7″×17.1″
6.1″×4.7″×17″
5.9″×4.7″×17″
Pump Chamber(Int. Dimensions)
80 x 118 x 387mm
80 x 95 x 387mm
140 x 120 x 435mm
300 x 120 x 433mm
221.5 x 120 x 433mm
3.1″ × 4.6″ × 15.2″
3.1″ × 3.7″ × 15.2″
5.5″×4.7″×17.1″
11.8″×4.7″×17″
8.7″×4.7″×17″
Directional Nozzle(Thread Size)
1 x M14 (14mm), Flare
1 x M20 (20mm), Y-shape
2 x M20 (20mm), Y-shape
Return Hose
lD: 12mm OD: 16mm
lD: 12mm OD: 16mm
lD: 18mm OD: 24mm
Pump
AP-1500
n.a.
Pump Flow
1000 LPH/265 GPH
n.a.
EVA Mat
x 1
x 1
Filtration
225 Micron Filter Socks
1 x 70mm/2.75″ FELT
2 x 70mm/2.75″ FELT
2 x 70mm/2.75″ FELT
4 x 70mm/2.75″ FELT
Filtration Sponge
x 2
x 4
x 4
x 4
Activated Carbon
150g
2 x 150g
2 x 150g
3 x 150g
Ceramic Ring
300g
2 x 300g
2 x 300g
3 x 30…
