Description

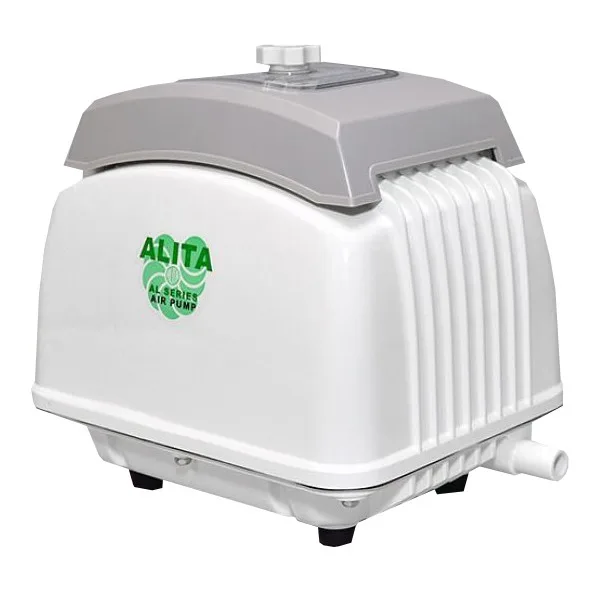

Alita AL250 E3 Linear Air Pump
Solid construction, low noise and long lasting.
Aluminum alloys housings.
Oil-less operation.
250+/- 5% LPM, 8.8 CFM +/- 5%, 2.9 psig = 6/7 ft w.c.
Specification
Model
AL-250W
AL-300
AL-400
AL-500
Voltage & Frequency
120VAC 60Hz, 230VAC 50Hz
Rated Pressure
20 kPa, 2.9 psig
Rated Performance (±5%) (lpm, cfm)
250, 8.8
300, 10.6
400, 14.1
500, 17.7
Rated Power (W)
200
300
370
480
Discharge Fittings
3/4″ FPT, 26 mm / 1 in O.D.
Dimension LxWxH
420 mm x 248 mm x 262 mm16.5 in x 9.8 in x 10.3 in
Weight (kg, lb)
19, 42
25, 49
25, 49
25, 49
