Description

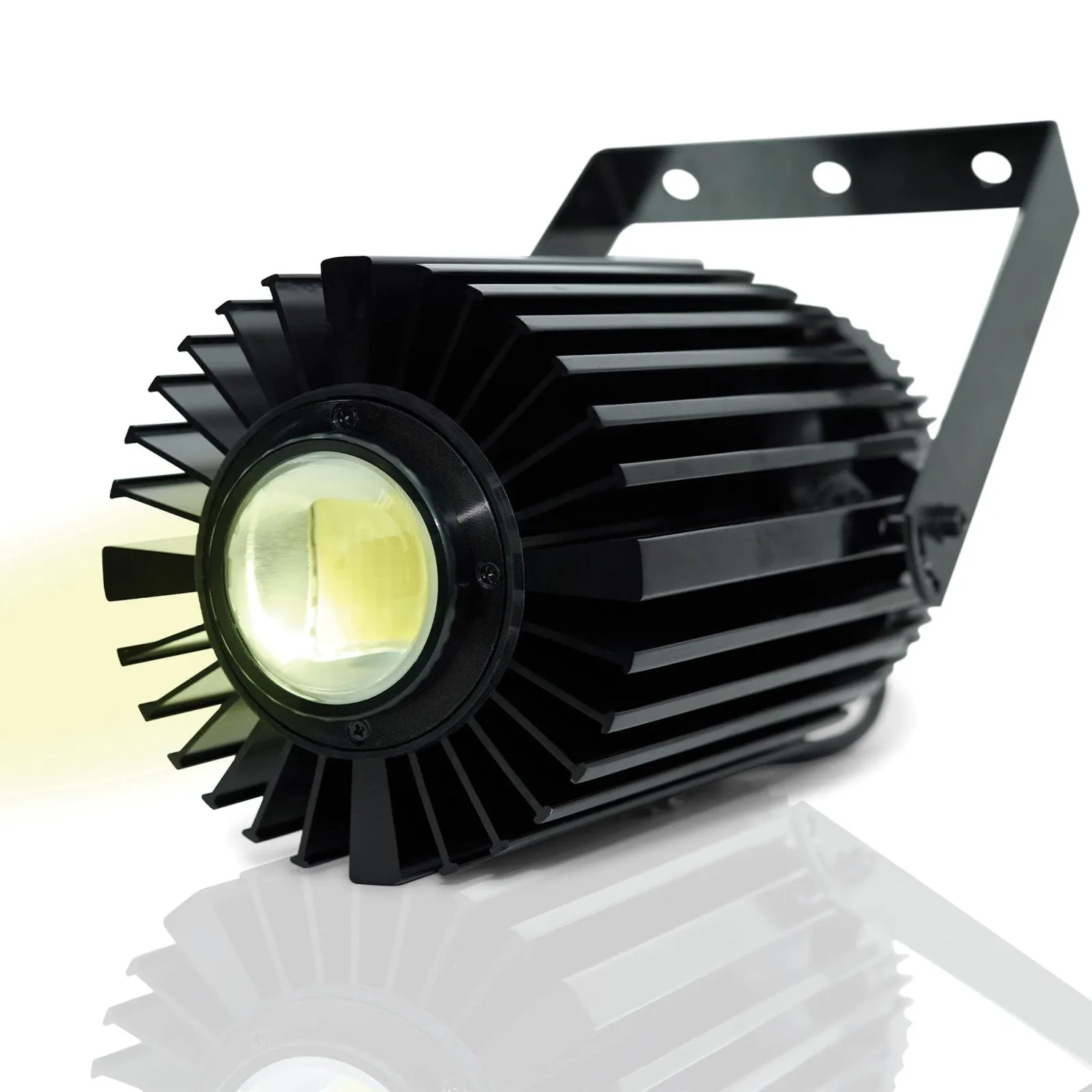

Producing a crisp, white spectrum combined with RGB, Cannon PRO RGBW LED is perfect for exhibits needing white with a bit of color. Featuring the latest in high-density LED chip technology, it’s color adjustable with an included IR remote, making it easy to customize and adapt to create a tailor-made lighting solution for almost any exhibit.
Product Technical Specifications –
Thermally efficient, the Cannon PRO utilizes a wide channel marine-grade aluminum housing and is very effective at transferring heat without the need for a cooling fan. Powered by a Meanwell HBG driver, the entire light is IP67 rated and ETL approved for wet environments, providing long life in even the harshest environments.
An integrated aluminum swivel bracket delivers light exactly where you want it, providing 360° rotation and 0°- 60° tilt. Glass optical lenses (45°, 60°, 90°, and 120°) deliver light uniformly to a precise target area with an exceptionally high punch rate and optimal spread. Included silicone lens snoot helps prevents any light spillage.
High-density multi-chip LED provides superior water penetration
Easy to adjust beam angle and light direction
Plug-and-play installation, no wiring required
Modular – use multiple LEDs together, adjust and blend
Dimmer compatible – 1-10%, PWM, Internal Dial
ETL Approved for Wet Environments, IP 65 Rated
8,000K + RGB – Applications:Marine or Freshwater Exhibits requiring simple color and intensity adjustability
Deeper Ocean ExhibitsShark ExhibitsTouch TanksPenguin and Bird ExhibitsDeeper Live Coral Tanks (combine with 460nm Blue or Marine Actinic)
SPECTRUM WAVELENGTH: 8,000K + RGB WhiteFLUX: 7023 lumensCRI: 81.1EFFICACY: 81.2 lm/wMAX WATTS: 85.5
SPECIFICATIONS
FIXTURE DIMENSIONS
Total Height: 310/397mm
Diameter: 160mm
Weight: 3.17 kg
Material: Aluminum
Snoot Length (optional):63.5mm
ELECTRICAL SPECS
Input Voltage: 90-305VAC
Output Voltage: 36VDC
Working Temp: -40 to +60C
Working Humidity: 20~95% RH
Driver: Meanwell HBG160 Series (160 watt)
Protections: Short circuit/ over current / over voltage / over temp
Built-in PFC Function, high efficiency 93.5%
Driver Certifications: UL, cUL, CE
Driver Warranty: 5 years
WHAT’S INCLUDED
Each Cannon Pro LED Pendant is pre-assembled and includes:
1 – High-density multichip LED
1 – Swivel mounting bracket and mounting hardware
1 – Meanwell HBG160 LED driver
1 – Threaded eye hook with a safety harness cable
3 – Glass optical lenses – 60º, 90º & 120º (90º pre-installed)
1 – 2.5” Aluminum light snoot
1 – 12ft. 120VAC Power Cord
Complete Instructions
** Models 6870 & 6878 include a built-in controller and wireless remote **(These models are not connectable to an external controller)
Optional Accessories:
Pipe/strut clamp for 3-4” dia pipe0-10V Ramp LED Controller (controls up to 12 Cannons)Adjustable hanging kit (120”)* Additional optical lenses available on request
