Description

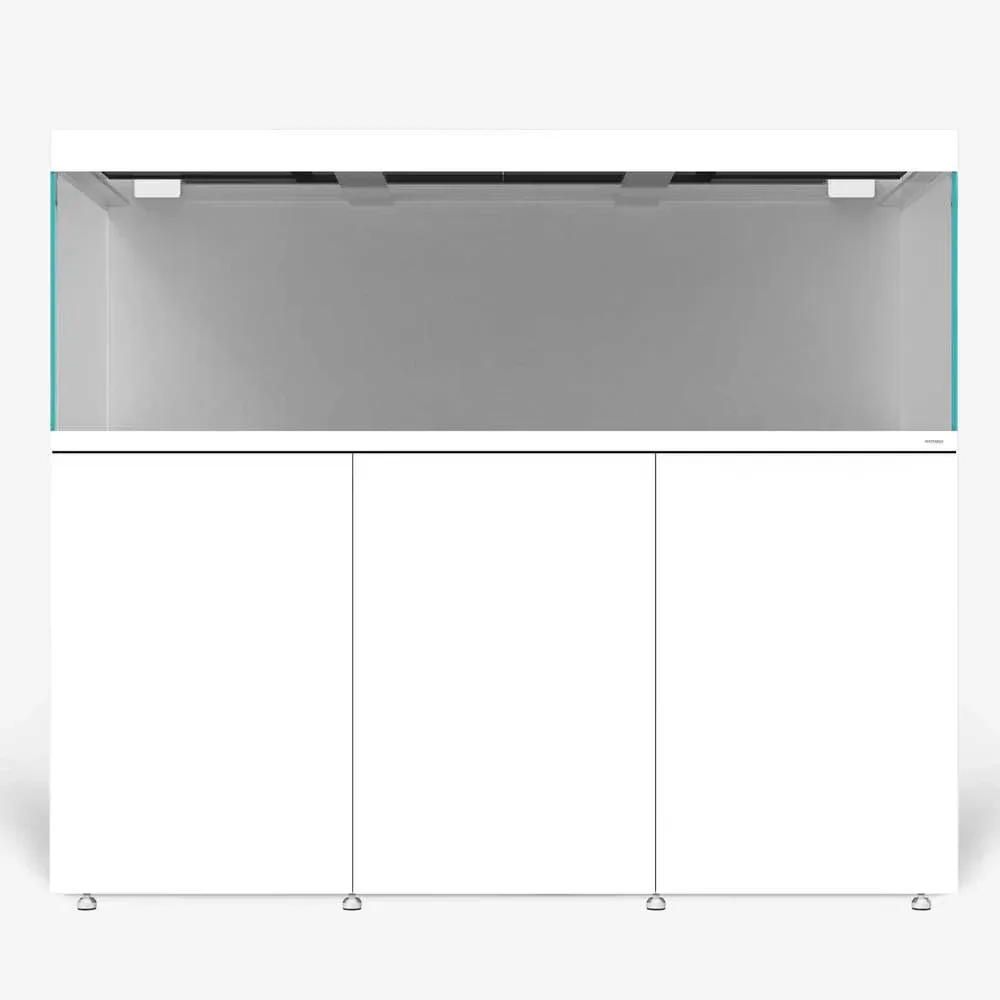

• Dimensions (LxWxH): 1,836 x 643 x 650mm (72.3″ × 25.3″ × 25.6″)• Height with Cabinet: 1,577mm/62.1″• Display Volume: 630 L/167 gals• Glass Thickness: 12-15mm• EDEN X 175 Includes: Aquarium, Cabinet, & FLED 140 (2)
Bigger Amazingly Clear Display Panels
Crafted with ultra-clear glass, you’ll enjoy an unmatched view of your mesmerizing aquatic world from every perspective.
Ultra-Clear diamond beveled glass offers visual clarity.
Our integrated glass lid system opens from both sides and is completely optional. It also helps to hide equipment and keeps your fish safe.
Designed to work with the Waterbox FLED, our glass lighting mounts conceal your lighting systems which maintains the contemporary look of the EDEN.
Each system includes one or two rear cut outs so you can easily integrate canister filters, powerheads and heaters.
Next Level Lighting
Full spectrum lighting with individual channel control to take complete control of your aquarium’s ambiance by adjusting each color channel independently.
Accessibility and Durability
Unveiling our new marine-grade cabinetry system. Showcasing strength, durability, and corrosion resistance. With long lasting performance at its core, this series is engineered to stand the test of time.
High weight capacity adjustable leveling feet ensure your aquarium is level, front to back and side-to-side.
Constructed with aluminum framing to easily withstand the weight and humidity of your aquarium system.
Technical Specifications
Product ModelEDEN X 105.4EDEN X 145.5EDEN X 175.6
System
System Length
1,223mm/48.1″
1,536mm/60.5″
1,836mm/72.3″
System Width
643mm/25.3″
643mm/25.3″
643mm/25.3″
System Height (with Cabinet)
1,527mm/60.1″
1,577mm/62.1″
1,577mm/62.1″
Total System Weight
151 kg/333 lbs
205 kg/452 lbs
240 kg/529 lbs
Aquarium
Dimensions
1,223 x 643 x 600mm
1,536 x 643 x 650mm
1,836 x 643 x 650mm
48.1″ × 25.3″ × 23.6″
60.5″ × 25.3″ × 25.6″
72.3″ × 25.3″ × 25.6″
Aquarium Volume
386 L/102 gals
529 L/140 gals
630 L/167 gals
Aquarium Weight
107 kg/236 lbs
148 kg/326 lbs
180 kg/397 lbs
Ultraclear Front & Sides
10mm (2/5″)
12mm (1/2″)
12mm (1/2″)
Bottom Glass
12mm (1/2″)
12mm (1/2″)
15mm (3/5″)
Regular Braced-braced Top
10mm (2/5″)
10mm (2/5″)
10mm (2/5″)
Glass Material
Ultra-clear Low Iron glass
Transmittance
91%
Mitered Joints
45-degrees
Tank Lid
5mm Black Glass
Max Water Level
515mm (20.3″)
565mm (22.2″)
562mm (22.1″)
Max LED Lighting Length
1,201mm (47.3″)
1,510mm (59.4″)
1,810mm (71.3″)
Min LED Lighting Length
1,112mm (43.8″)
1,421mm (55.9″)
1,721mm (67.8″)
Max LED Lighting Thickness
42mm (1.7″)
42mm (1.7″)
42mm (1.7″)
Max Canister Filter Piping
DN32 (ID: 32mm OD: 40mm)
DN32 (ID: 32mm OD: 40mm)
DN32 (ID: 32mm OD: 40mm)
Vinyl on Rear Glass
Black for BLK, White for WHT
Silicone Color
Black for BLK, Clear for WHT
Top Banding Width
85mm (3.3″)
Bottom Banding Width
40mm (1.5″)
EVA Mat (Black/White)
x 1
LEDLighting
LED Lighting for Freshwater
FLED 100
FLED 120
FLED 140
Length
1180mm (46.5″)
1,490mm (58.7″)
1,790mm (70.5″)
Width
92mm (3.6″)
92mm (3.6″)
92mm (3.6″)
Height
10mm (2/5″)
10mm (2/5″)
10mm (2/5″)
Wattage
Max.50W x 2
Max.60W x 2
Max.70W x 2
LED – White
56
84
84
LED – RGB
70
84
112
Luminous flux (lm)
6,120
7,200
8,350
Power Adapter
24V, 5.2A (US)
24V, 6.35A (US)
24V, 6.35A (US)
Universal Input Range
100 to 420 VAC / 50-60Hz
Total Cable Length
4,300mm (169.3″)
Material
Anodized Aluminum Alloy
Marine-ShieldCabinet
Cabinet Model
MSII 4825
MSII 6025
MSII 7225
Cabinet Dimensions
1,223 x 643 x 927mm
1,536 x 643 x 927mm
1,836 x 643 x 927mm
48.2″ × 25.3″ × 36.5″
60.5″ × 25.3″ × 36.5″
72.3″ × 25.3″ × 36.5″
Sump Compartment(Int. Dimensions)
1182 x 549 x 848mm
1,495 x 541 x 848mm
1,795 x 541 x 848mm
46.5″ × 21.6″ × 33.4″
58.9″ × 21.3″ × 33.4″
70.7″ × 21.3″ × 33.4″
Cabinet Framework
Anti-corrosion Aluminum Alloy
Door Panels
Double-sided 18mm PET laminated Wood Oriented Strand Board
Side Panels
Aluminum Composite
Bottom Panels
10mm PVC Board
Back Panels
5mm PVC Board
Cabinet Weight
44 kg/97 lbs
57 kg/126 lbs
60 kg/132 lbs
Cabinet Color
WHT-White, BLK-Black
