Description

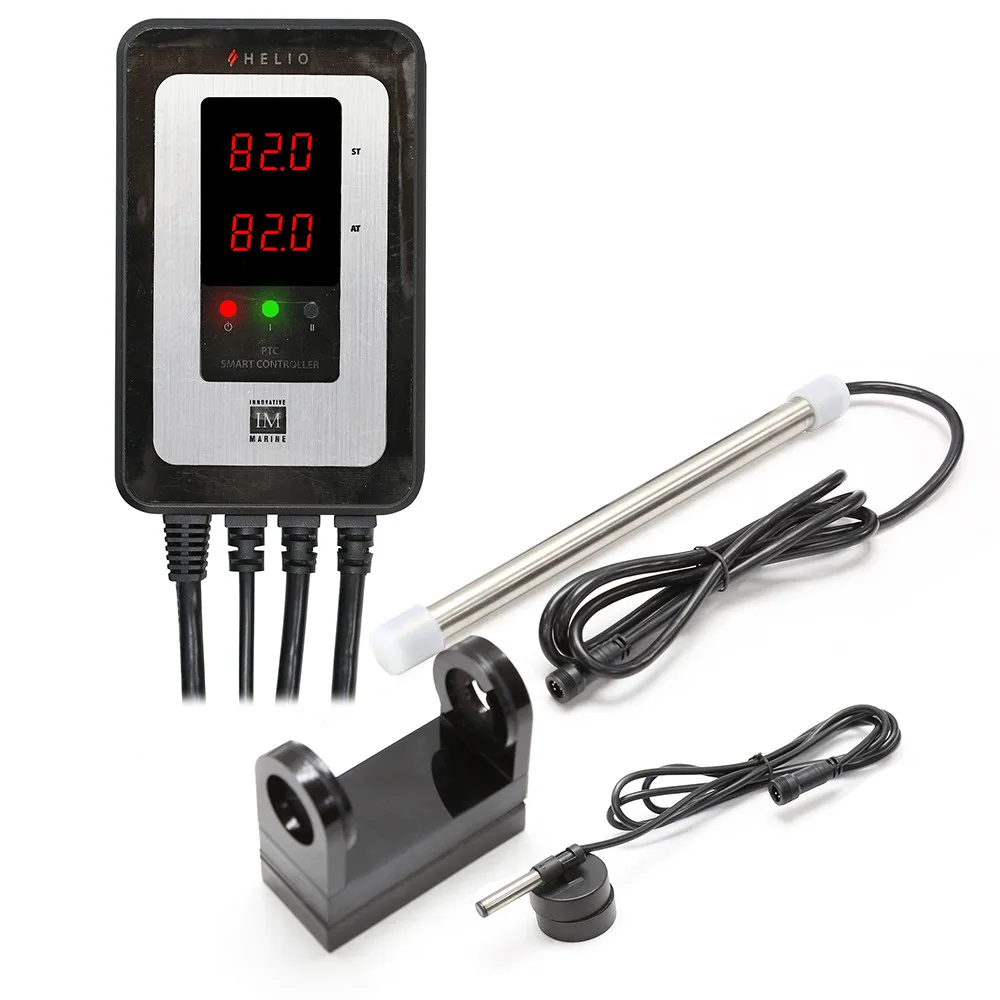

IM AUQA Gadget – Helio Heater – 200 Watt
Aquarium Size: 25 – 50 Gallons*Based on +10°F water temperature increase from current ambient temperature.Heating Element Dims: L 7″ x D .80″Remote Sensor Dimensions: L 2.3″ x D .31″
Helio Smart Controller Dims: L 3.13″ x W 1.31″ x H 5″
Helio PTC Smart Controller Specifications
Factory Preset Temperature: 77°F
Factory Preset Low Alarm: 74°F
Factory Preset High Alarm: 80°F
Temp Set Range: 59° – 95°F
Low Alarm General Range: 57° – 93°F
Low Alarm Minimum Range: -2°F from Set Temperature
High Alarm General Range: 60° – 96°F
High Alarm Minimum Range: +1°F from Set Temperature
Accuracy: < ±1°F
Resolution: 0.1°F
Calibration Range: ±9°F
Watt/Amp Draw: 200W 120V / 1.67amps
Product Weight: 2.49 lbs.
Error Code Quick Guide
E1-Remote Sensor Not Connected: The remote sensor is not connected. Check the connection between the controller and the remote sensor.
E2-Element(s) Not Connected: One or both elements are not connected. Check the connection between the controller and element(s).
E3-High Temperature Alarm: The aquarium's water temperature has exceeded the high temperature set point.
E4-Low Temperature Alarm: The aquarium's water temperature has subceeded the low temperature set point.
E5-Element (I) Error: Element (I) is out of water or low water flow detected around element (I).
E6-Element(II) Error: Element (II) is out of water or low water flow detected around element (II).
E7-Remote Sensor Error: Remote sensor has been detected to be out of water or a sudden temperature swing.
