Description
The INFINIA lineup caters to both frag and full reef setups with ultra-shallow and standard-height displays. These systems are made for showcasing coral with ample space for rockwork and custom scaping. Available in reef, frag, and peninsula variants, INFINIA tanks offer high-volume aquatics with refined aesthetics and performance-driven design features.
• Dimensions (LxWxH): 1223 x 643 x 410mm (48.2″ x 25.3″ x 16.1″)• Height with Cabinet: 1,337 mm / 52.6″• Display Volume: 295 L / 78 gal• Total Volume: 473 L / 125 gals• Glass Thickness: 12 mm (1/2″)• Includes: Aquarium, Cabinet, Sump, Plumbing Kit, Filter Socks, Sock Silencers
The Display
Reach New Heights
Waterbox Aquariums® takes pride in hand-crafting stunning glass display aquariums that are renowned for superior cleanliness and quality.
Renowned for superior quality.
Ultra-Clear diamond beveled glass offers visual clarity up to 19mm (3/4”).
High-strength black silicone provides clean lines and longevity.
Central Overflow with water etched glass weir comb allows for optimal flow.
The Plumbing
Safe, Silent and Tested for Performance
Our plumbing systems offer the convenience of quick and easy assembly, while delivering high-performance results equivalent to those achieved through custom designs.
Quick Connect Fittings assemble quick and easy with no glue required.
Easy Assembly With No Glue Required
Return Line includes dual adjustable nozzles for maximum turnover.
Precision Overflow Valve allows for precise adjustments ensuring quiet operation.
Manifold provides access for additional reactors and equipment.
Designed to prevent flooding.
Check Valve ensures back syphon does not overflow the sump.
Check valve only on INFINIA REEF models.
The Sump
Did you say filter roller?
The INFINIA® sump system features an integrated filter sock chamber which can easily adopt the most popular filter rollers.
Filter Sock Filtration featuring dual 7-inch filter socks to maximize filtration capacity.
Skimmer or Media Reactor Chamber with ample space for the industry’s leading skimmers and reactors.
Easily adopt the most popular filter rollers.
Refugium maximizes your nutrient export.
Included RO Reservoir for ease of maintenance using an electronic top-off system.
The Cabinetry
Strength and Durability
Unveiling our new MarineShield® cabinetry system. Showcasing strength, durability, and corrosion resistance. With long lasting performance at its core, this series is engineered to stand the test of time.
Constructed with aluminum framing to easily withstand the weight and humidity of your aquarium system.
High weight capacity adjustable leveling feet ensure your aquarium is level, front to back and side-to-side.

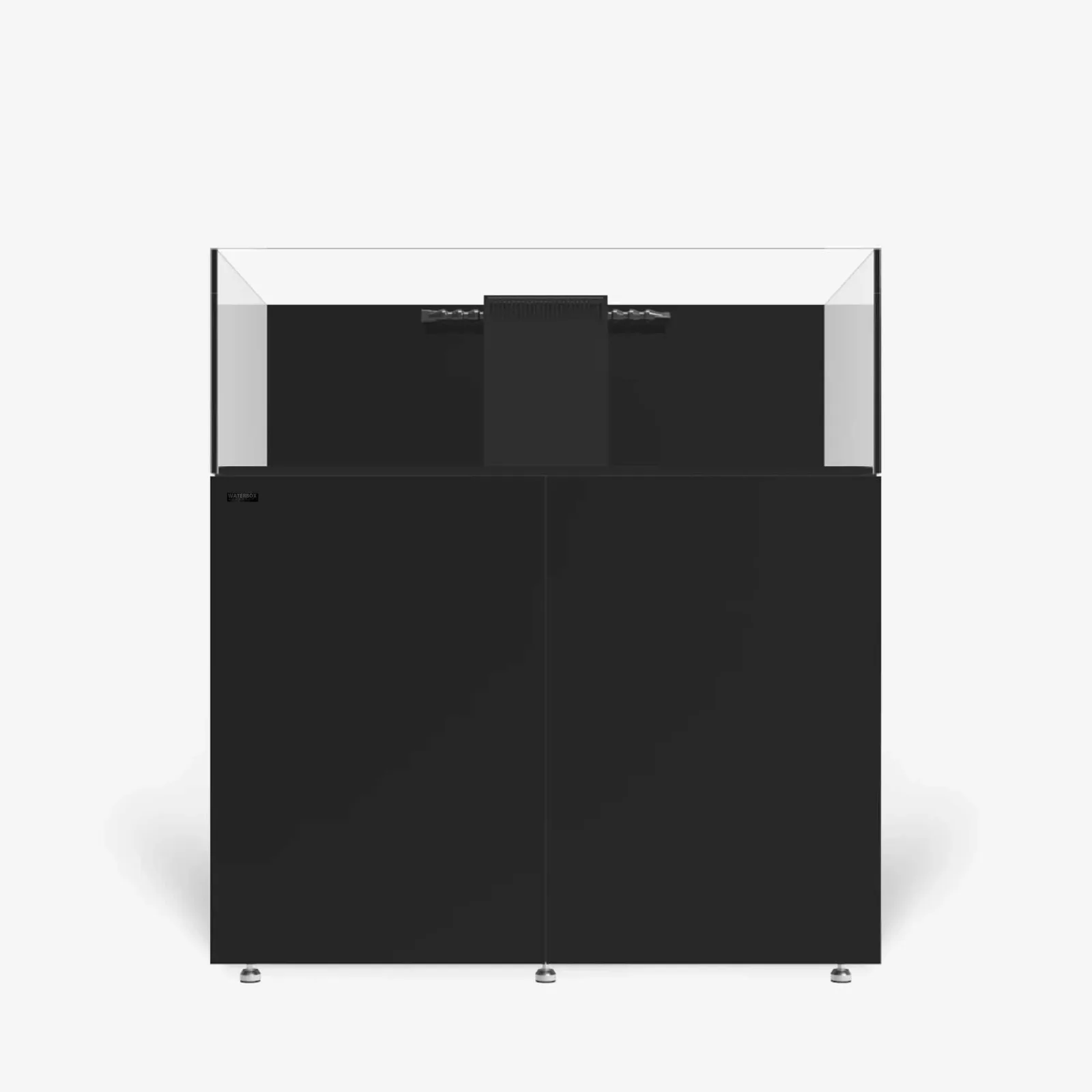

INFINIA FRAG
Product ModelINFINIAFRAG 125.4INFINIAFRAG 155.5INFINIAFRAG 175.6
System
Height with Cabinet
1,337mm/52.6″
1,337mm/52.6″
1,337mm/52.6″
Total Volume with ATO
469 L/123.8 gals
585 L/154.6 gals
690 L/182.2 gals
Total System Weight
175 kg/386 lbs
211 kg/465 lbs
232 kg/511 lbs
DisplayTank
Tank Dimensions
1,223 x 643 x 410mm
1,536 x 643 x 410mm
1,836 x 643 x 410mm
48.2″ × 25.3″ × 16.1″
60.5″ × 25.3″ × 16.1″
72.3″ × 25.3″ × 16.1″
Glass Thickness
12mm (1/2″)
12mm (1/2″)
12mm (1/2″)
Aquarium Volume
295 L/78 gals
372 L/98.4 gals
446 L/117.9 gals
Aquarium Weight
82 kg/181 lbs
98 kg/216 lbs
113 kg/249 lbs
Glass Material
Ultra-clear Low Iron glass (front and sides)
Transmittance
91%
In-cabinetSump
Dimensions
838 x 475 x 380mm
965 x 475 x 380mm
1,143 x 475 x 380mm
34″ × 18.7″ × 15″
42″ × 18.7″ × 15″
45″ × 18.7″ × 15″
Sump Volume
140 L/37.1 gals
162 L/42.8 gals
192 L/50.8 gals
Sump Weight
40 kg/88 lbs
45 kg/99 lbs
48 kg/106 lbs
Glass Thickness
8mm (5/16″)
Refugium Chamer(Max Int. Dimensions)
180 x 400mm
250 x 400mm
300 x 400mm
7.1″ × 15.8″
9.8″ × 15.8″
11.8″ × 15.8″
Refugium Chamer(Min Int. Dimensions)
140 x 400mm
200 x 400mm
230 x 400mm
5.5″ × 15.8″
7.9″ × 15.8″
9.1″ × 15.8″
Skimmer Chamber(Int. DIM, w/o Refugium)
416 x 400mm
528 x 400mm
676 x 400mm
16.4″ × 15.8″
20.8″ × 15.8″
26.6″ × 15.8″
Skimmer Chamber(Int. DIM, with Min Refugium)
271 x 400mm
323 x 400mm
441 x 400mm
10.7″ × 15.8″
12.7″ × 15.8″
17.4″ × 15.8″
Skimmer Chamber(Int. DIM, with Max Refugium)
231 x 400mm
273 x 400mm
371 x 400mm
9.1″ × 15.8″
10.7″ × 15.8″
14.6″ × 15.8″
Pump Chamber(Int. Dimensions)
135x 400mm
150 x 400mm
180 x 400mm
5.3″ × 15.8″
5.9″ × 15.8″
7.1″ × …
