Description

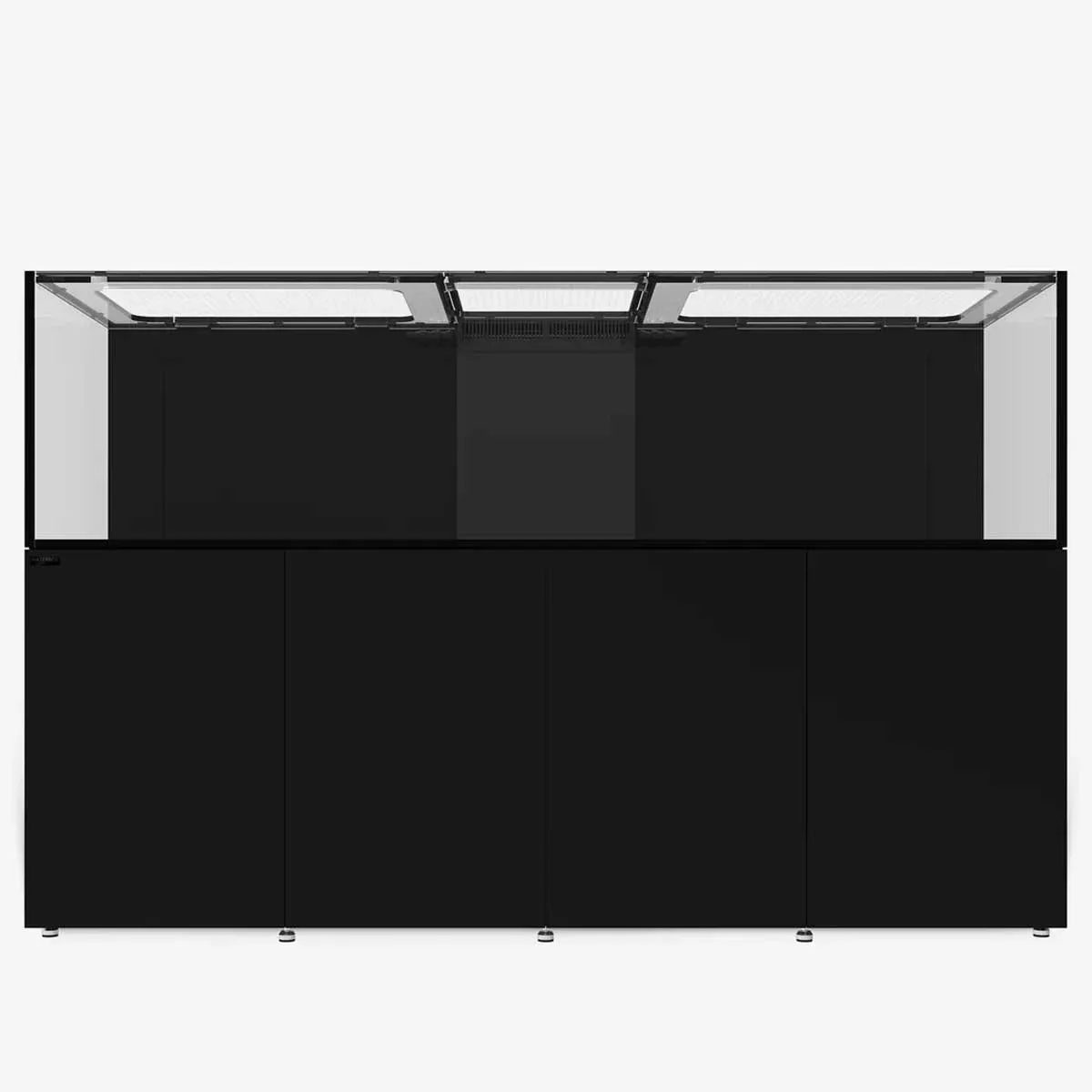

Showcasing the pinnacle of Waterbox engineering, REEF LX tanks offer expansive euro braced displays up to 8 feet and 380 gallons, with glass-built overflow boxes, pre-assembled cabinetry, and tiered sump designs. Tailored for large-scale reef ecosystems
• Dimensions (LxWxH): 2,448 x 750 x 650mm (96.4″ × 29.5″ × 25.6″)• Height with Cabinet: 1,577mm/62.1″• Display Volume: 1,083 L/286 gals• Total Volume: 1,450 L/383.1 gals• Glass Thickness: 19mm• Includes: Aquarium, Pre-Assembled Cabinet, Sump, Plumbing Kit, Filter Socks, Sock Silencers
A Seismic Aquarium
The REEF LX reigns as the foremost premium reef aquarium in our lineup. Each system includes euro-braced Ultra Clear Low Iron Display, Fully Assembled Cabinetry, plumbing kit and sump system.
Renowned for superior quality.
Ultra-Clear diamond beveled glass offers visual clarity up to 19mm (3/4”).
CNC precision Eurobrace with mesh lid reinforces the 19mm Ultra Clear Glass Viewing Panels.
High-strength black silicone provides clean lines and longevity.
Central Overflow with water etched glass weir comb allows for optimal flow.
Safe, Silent and Tested for Performance
Our plumbing systems offer the convenience of quick and easy assembly, while delivering high-performance results equivalent to those achieved through custom designs.
Quick Connect Fittings assemble quick and easy with no gluing required.
Easy Assembly with no gluing required
Return Line includes dual adjustable nozzles for maximum turnover.
Precision Overflow Valve allows for precise adjustments ensuring quiet operation.
Manifold provides access for additional reactors and equipment.
Designed to prevent flooding.
Check Valve ensures back syphon does not overflow the sump.
Did you say filter roller?
The REEF LX sump system features an integrated filter sock chamber which can easily adopt the most popular filter rollers.
Filter Sock Filtration featuring dual 7-inch filter socks to maximize filtration capacity.
Skimmer or Media Reactor Chamber with ample space for the industry’s leading skimmers and reactors.
Easily adopt the most popular filter rollers.
Refugium maximizes your nutrient export.
Included RO Reservoir for ease of maintenance using an electronic top-off system.
Strength and Durability
The REEF LX cabinetry system arrives fully assembled, utilizing robust 30mm aluminum framing and sleek exterior paneling in white or black.
Constructed with aluminum framing to easily withstand the weight and humidity of your aquarium system.
High weight capacity adjustable leveling feet ensure your aquarium is level, front to back and side-to-side.
Constructed with 30mm aluminum framing to easily withstand the weight and humidity of your aquarium system.
Electrical Compartment makes it easy to maintain controllers and electrical components organized.
Technical Specifications
Product ModelREEF LX 290.6REEF LX 330.7REEF LX 380.8
System
Height with Cabinet
1,577mm/62.1″
1,577mm/62.1″
1,577mm/62.1″
Total Volume with RO/ATO
1,091 L/288.3 gals
1,250 L/330.2 gals
1,450 L/383.1 gals
Total System Weight
356 kg/785 lbs
477 kg/1052 lbs
537 kg/1184 lbs
DisplayTank
Tank Dimensions
1,836 x 750 x 650mm
2,136 x 750 x 650mm
2,448 x 750 x 650mm
72.3″ × 29.5″ × 25.6″
84.1″ × 29.5″ × 25.6″
96.4″ × 29.5″ × 25.6″
Ultraclear Front & Sides
19mm (3/4″)
19mm (3/4″)
19mm (3/4″)
Bottom Glass
19mm (3/4″)
19mm (3/4″)
19mm (3/4″)
Euro-bracing Thickness
15mm (3/5″)
15mm (3/5″)
15mm (3/5″)
Aquarium Volume
808 L/213.4 gals
943 L/249 gals
1,083 L/286 gals
Aquarium Weight
266 kg/586 lbs
301 kg/664 lbs
336 kg/741 lbs
Glass Material
Ultra-clear Low Iron glass (front, sides and euro-bracing)
Transmittance
91%
In-cabinetSump
Dimensions
1,016 x 610 x 400mm
1,118 x 610 x 400mm
1,270 x 610 x 400mm
40″ × 24″ × 15.7″
44″ × 24″ × 15.7″
50″ × 24″ × 15.7″
Sump Volume
233 L/61.5 gals
257 L/67.8 gals
292 L/77.1 gals
Sump Weight
55 kg/121 lbs
59 kg/130 lbs
65 kg/143 lbs
Glass Thickness
8mm (5/16″)
8mm (5/16″)
8mm (5/16″)
Refugium Chamer(Ma x Int. Dimensions)
250 x 518mm
300 x 518mm
350 x 518mm
9.8″ × 20.4″
11.8″ × 20.4″
13.8″ × 20.4″
Refugium Chamer(Min Int. Dimensions)
200 x 518mm
230 x 518mm
250 x 518mm
7.9″ × 20.4″
9.1″ × 20.4″
9.8″ × 20.4″
Skimmer Chamber(Int. DIM, w/o Refugium)
547 x 518mm
649 x 518mm
801 x 518mm
21.5″ × 20.4″
25.6″ × 20.4″
31.5″ × 20.4″
Skimmer Chamber(Int. DIM, with Min Refugium)
342 x 518mm
414 x 518mm
546 x 518mm
13.5″ × 20.4″
16.3″ &tim…
