Description

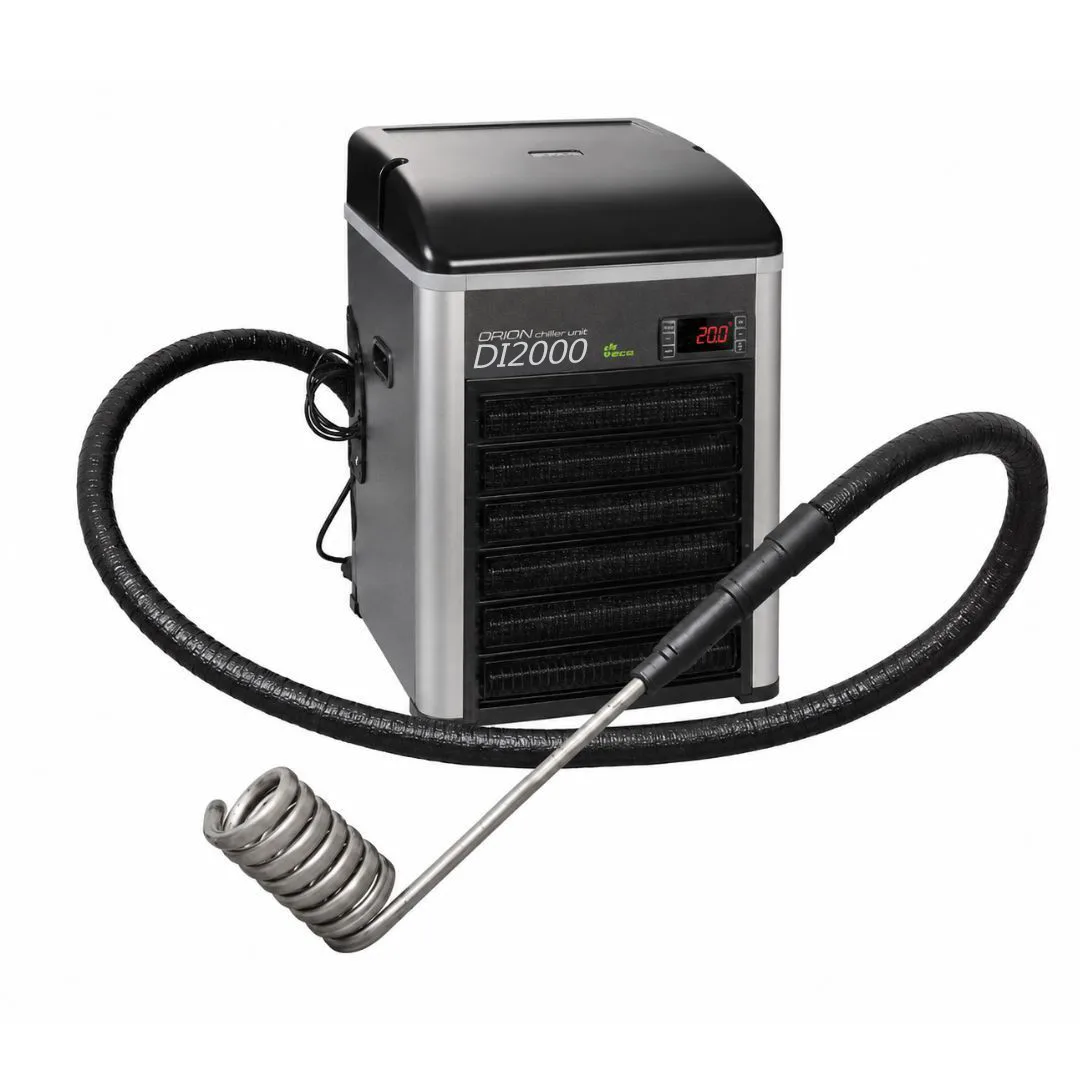

Teco Tank DI-2000 Drop-In Chiller
Drop-In Chiller for aquariums, hydroponic systems, and water applications requiring flexible installation
Our NEW TECO DI-2000 Drop-In Chiller introduces a revolutionary approach to water cooling by eliminating the need for plumbing modifications or inline installation. Utilizing a corrosion-resistant titanium heat exchanger coil that is placed directly into the water, the DI-2000 provides efficient and reliable temperature control while offering installation flexibility.
Designed for aquariums, hydroponics, aquaculture systems, temporary installations, and retrofit applications, the DI-2000 is ideal for users seeking a simple plug-and-play cooling solution. The compact design allows the chiller to be installed without disrupting existing filtration or circulation systems, making it one of the easiest cooling solutions available today.
Powered by TECO’s advanced refrigeration technology and environmentally friendly R290 refrigerant, the DI-2000 delivers exceptional cooling performance while reducing energy consumption and environmental impact.
TECHNICAL SPECIFICATIONS
Coil exchanger size
11.2” long
Flexible pipe length
6.4 feet long
Dimensions
310 × 310 × h500 mm
12.2 × 12.2 × h19.69 in
Weight
20.3 kg
44.8 lb
Power supply
230 V – 50 Hz
115 V – 60 Hz
Water tank capacity*
2000 liters
530 gallons
Min water flow
2400 l/h
634 US gal/h
Ambient temperature range
16°C – 38°C
61°F – 100°F
Water temperature range
5°C – 30°C
41°F – 86°F
Refrigerant
R290
Display temperature
°C (also °F available on request)
Heater
Not available
* Note: Reported value refers to the following condition: room temperature 30°C (86°F), water temperature 25°C (77°F), heating load of 0.2 w/lt.
R290 BENEFITS
Reduces energy consumption by 30% to 50%
Replaces traditional ozone-damaging refrigerants
Scores 3 out of 150 on the Global Warming Potential (GWP) scale
Environmentally responsible cooling technology
DROP-IN TITANIUM HEAT EXCHANGERThe high-efficiency titanium coil is designed to be submerged directly into the water, providing excellent heat transfer and maximum corrosion resistance in both freshwater and saltwater applications.
EXTERNAL TEMPERATURE PROBEUnlike traditional chillers that monitor temperature internally, the DI Series features an external temperature probe that continuously measures the actual water temperature within the aquarium, sump, or reservoir. This allows for more accurate temperature monitoring and improved cooling control, helping maintain a stable environment for aquatic life and sensitive growing systems.
NO PLUMBING REQUIREDUnlike traditional inline chillers, the DI-20
00 requires no plumbing modifications, fittings, or dedicated water connections. Simply position the titanium coil in the sump or reservoir and begin cooling.
FLEXIBLE INSTALLATIONPerfect for existing aquariums, hydroponic reservoirs, aquaculture systems, temporary setups, and emergency cooling applications. The drop-in design allows for fast installation and easy relocation when needed.
DIGITAL TEMPERATURE CONTROLIntuitive electronic thermostat provides precise temperature management with accurate monitoring and dependable operation. Displays in °F or °C for user convenience.
DURABLE TECO CONSTRUCTIONBuilt with the same premium quality and reliability that has made TECO chillers the preferred choice of aquarium professionals worldwide. Corrosion-resistant materials and high-quality components ensure years of dependable performance.
