Description

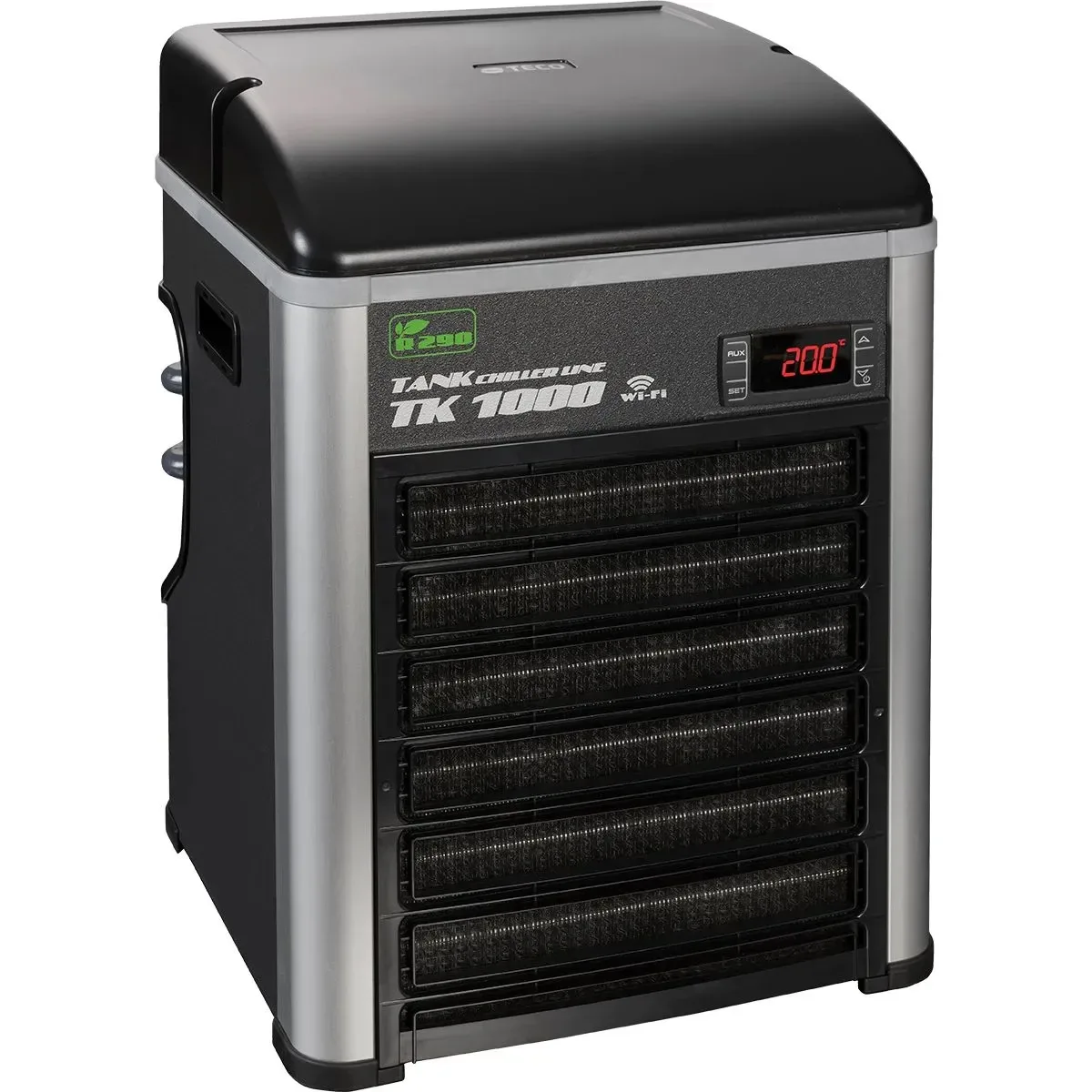

Teco TANK TK-1000 Aquarium Chiller
EFFICIENT COOLING TECHNOLOGY
Internationally-recognized high-end compressors and titanium coaxial heat exchangers provide high performance, low energy consumption, and low noise levels.
DIGITAL THERMOSTAT
Intuitive controller with accurate temperature detection from 32 to 95°F. Closed-loop temperature control system with an extremely tight differential of 1°F. Displays in °F or °C, and audible alarms for certain situations.
EFFICIENT DESIGN
Solid and durable structure designed to guarantee near perfect protection against corrosion. Rotatable in-set water connections, rotatable exhaust conveyor, and smaller form-factor help facilitate placement of chiller in confined spaces.
Teco TANK TK-1000 Aquarium Chiller
EFFICIENT COOLING TECHNOLOGY
Internationally-recognized high-end compressors and titanium coaxial heat exchangers provide high performance, low energy consumption, and low noise levels.
DIGITAL THERMOSTAT
Intuitive controller with accurate temperature detection from 32 to 95°F. Closed-loop temperature control system with an extremely tight differential of 1°F. Displays in °F or °C, and audible alarms for certain situations.
EFFICIENT DESIGN
Solid and durable structure designed to guarantee near perfect protection against corrosion. Rotatable in-set water connections, rotatable exhaust conveyor, and smaller form-factor help facilitate placement of chiller in confined spaces.
Cooling Performance
Ability of the TANK TK-1000 to pull down water temperatures in an 86°F room:
AQUARIUM SIZETEMP. ATTAINABLEHEATING LOADNET PULL-DOWNC.O.P.*
260 gallons
77°F from 86°F
1.89 watts/gal.
9°F cooler
2.1
55 gallons
47°F from 86°F
0.38 watts/gal.
39°F cooler
1.3
* Coefficient of Performance (COP) – a numerical value that represents cooling performance from a baseline room temperature of 86°F and a typical heat source (aka. Heating Load
Technical Specifications
Recommended Aquarium Size
between 60-200 gallons
Horsepower
1/4 HP
Maximum Pressure
8.7 psi
Minimum Flow Rate
132 gallons per hour
Maximum Flow Rate
211 gallons per hour
In/Out Water Connection
5/8″ tube diameter
Exchanger
titanium
Supply
120V-60Hz
Power Consumption
315 Watts
Gas/Refrigerant
R290
Minimum Set Point
41°F
Maximum Set Point
95°F
Weight
44.1 lbs (20.0 kg)
Dimensions
12.2″ x 12.2″ x 18.03″
Product code: 7118Item No. CH-TK1000
