Description

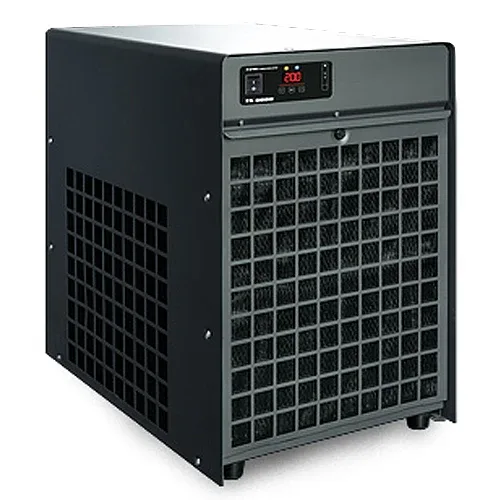

TANK TK-3000 Aquarium Chiller
Internationally-recognized high-end compressors and titanium coaxial heat exchangers provide high performance, low energy consumption and low noise levels.
BUILT-IN HEATER
The TANK® TK-2000 comes standard with a heater built into the unit (previously, had to be purchased and installed separately). The built-in heater provides better control over water temperatures and can be operated through the digital thermostat.
DIGITAL THERMOSTAT
Intuitive controller with accurate temperature detection from 32 to 95°F. Closed loop temperature control system with extremely tight differential of 1°F. Displays in °F or °C, and audible alarms for certain situations.
EFFICIENT DESIGN
Solid and durable structure designed to guarantee near perfect protection against corrosion. Rotatable in-set water connections, rotatable exhaust conveyor, and smaller form-factor helps facilitate placement of chiller in confined spaces.TANK TK-3000 Aquarium Chiller
Temperature control range: 43F – 100F.
Internationally-recognized high-end compressors and titanium coaxial heat exchangers provide high performance, low energy consumption and low noise levels.
BUILT-IN HEATER
The TANK® TK-2000 comes standard with a heater built into the unit (previously, had to be purchased and installed separately). The built-in heater provides better control over water temperatures and can be operated through the digital thermostat.
DIGITAL THERMOSTAT
Intuitive controller with accurate temperature detection from 32 to 95°F. Closed loop temperature control system with extremely tight differential of 1°F. Displays in °F or °C, and audible alarms for certain situations.
EFFICIENT DESIGN
Solid and durable structure designed to guarantee near perfect protection against corrosion. Rotatable in-set water connections, rotatable exhaust conveyor, and smaller form-factor helps facilitate placement of chiller in confined spaces.
Cooling Performance
Ability of the TANK TK-3000 to pull down water temperatures in an 86°F room:
AQUARIUM SIZETEMP. ATTAINABLEHEATING LOADNET PULL-DOWNC.O.P.*
790 gallons
77°F
1.89 watts/gal.
9°F cooler
2.8
210 gallons
47°F
0.38 watts/gal.
39°F cooler
1.4
* Coefficient of Performance (COP) – a numerical value that represents cooling performance from a baseline room temperature of 86°F and a typical heat source (aka. Heating Load
Technical Specifications
Recommended Aquarium Size
up to 750 gallons
Horsepower
1/2 HP
Maximum Pressure
14.5 psi
Minimum Flow Rate
793 gallons per hour
Maximum Flow Rate
1,057 gallons per hour
In/Out Water Connection
1″ tube diameter
Exchanger
titanium
Supply
120V-60Hz
Power Consumption
750 Watts
Gas/Refrigerant
R410A
Weight
92.6 lbs. (42.0 kg)
Dimensions
23.62″ x 15.16″ x 25.59″
Product code: 7120Item No. CH-TK3000
