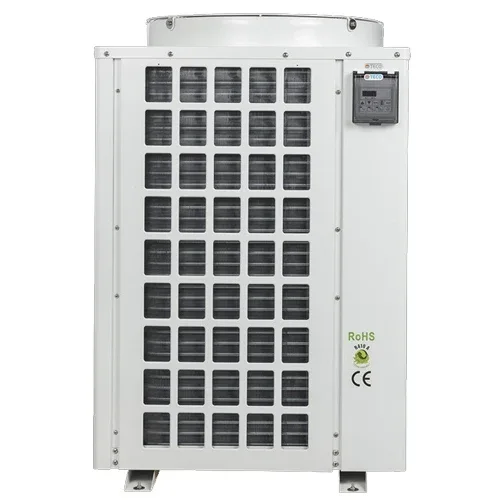

Teco TK-15K Heat Pump 6 HP, 240V-60Hz, 3 phase

Description

Teco TK-15K Heat Pump 6 HP, 240V-60Hz, 3 phase

HIGH-PERFORMANCE REFRIGERATION TECHNOLOGY
TK Heat Pumps use internationally-recognized rotary compressors with a titanium coaxial heat exchangers to ensure low-energy consumption while sustaining the highest in performance throughput. The technology in these heat pumps allows one to decrease noise levels and achieve a high COP (coefficient of performance) contributing to significant energy savings.
DIGITAL THERMOSTAT
The setting of functions is intuitive and the temperature detection is accurate, resolution 0.1/0.2°F. The setting range is 0°-35°C (32°F-95°F) and there is a closed loop temperature control system with high accuracy and extremely tight differential (0.5°C/1°F). Displayed temperature is in °C or °F and there are security alarms. Possibility to monitor the chiller even remotely, degree of protection IP24.
EFFICIENT DESIGN
The unit is characterized by a solid structure and was designed to provide maximum oxidation protection–great for use with salt-water.
UNIQUE FEATURES
TK Heat Pumps are also suitable suitable for many industrial applications.
Teco TK-15K Heat Pump 6 HP, 240V-60Hz, 3 phase

HIGH-PERFORMANCE REFRIGERATION TECHNOLOGY
TK Heat Pumps use internationally-recognized rotary compressors with a titanium coaxial heat exchangers to ensure low-energy consumption while sustaining the highest in performance throughput. The technology in these heat pumps allows one to decrease noise levels and achieve a high COP (coefficient of performance) contributing to significant energy savings.
DIGITAL THERMOSTAT
The setting of functions is intuitive and the temperature detection is accurate, resolution 0.1/0.2°F. The setting range is 0°-35°C (32°F-95°F) and there is a closed loop temperature control system with high accuracy and extremely tight differential (0.5°C/1°F). Displayed temperature is in °C or °F and there are security alarms. Possibility to monitor the chiller even remotely, degree of protection IP24.
EFFICIENT DESIGN
The unit is characterized by a solid structure and was designed to provide maximum oxidation protection–great for use with salt-water.
UNIQUE FEATURES
TK Heat Pumps are also suitable suitable for many industrial applications.

Technical Specifications

Recommended Aquarium Size

please contact us for specific sizing

Horsepower

6 HP

Maximum Pressure

29 psi

Minimum Flow Rate

1,717 gallons per hour

Maximum Flow Rate

2,113 gallons per hour

In/Out Water Connection

1.5″ tube diameter

Cooling Power

14.60 kilowatts (kW)

Power Supply

240-volts, 60Hz – 3 phase / 15.2 Amps

Required Breaker

60 Amp

Gas/Refrigerant

R410A

Power Consumption (Cooling)

6,900 watts – 23,500 BTU/hr

Power Consumption (Heating)

4,100 watts – 14,000 BTU/hr

Working Modes

Cool, Heat

Weight

286.6 lbs (130 kg)

Dimensions

26.18″ x 28.54″ x 41.02″

Product code: 7125Item No. CH-TK15K
