Description

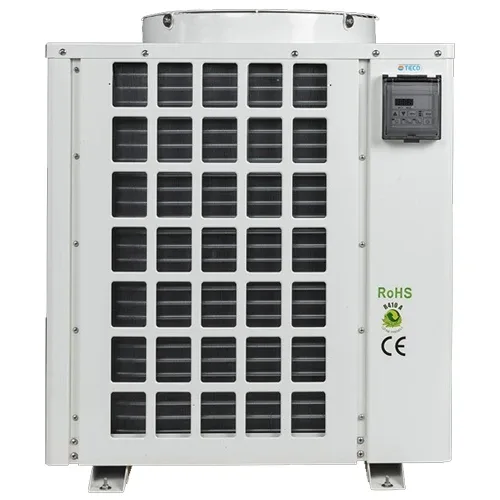

Teco TK-5K Heat Pump 2 HP, 240V-60Hz, 1 phase
HIGH-PERFORMANCE REFRIGERATION TECHNOLOGY
TK Heat Pumps use internationally-recognized rotary compressors with a titanium coaxial heat exchangers to ensure low-energy consumption while sustaining the highest in performance throughput. The technology in these heat pumps allows one to decrease noise levels and achieve a high COP (coefficient of performance) contributing to significant energy savings.
DIGITAL THERMOSTAT
The setting of functions is intuitive and the temperature detection is accurate, resolution 0.1/0.2°F. The setting range is 0°-35°C (32°F-95°F) and there is a closed loop temperature control system with high accuracy and extremely tight differential (0.5°C/1°F). Displayed temperature is in °C or °F and there are security alarms. Possibility to monitor the chiller even remotely, degree of protection IP24.
EFFICIENT DESIGN
The unit is characterized by a solid structure and was designed to provide maximum oxidation protection–great for use with salt-water.
UNIQUE FEATURES
TK Heat Pumps are also suitable suitable for many industrial applications.
Teco TK-5K Heat Pump 2 HP, 240V-60Hz, 1 phase
The TECO TK-series Heat Pumps are high-performance units designed for aquarium applications. These heat pumps are built with high-quality materials, even the smallest components.
HIGH-PERFORMANCE REFRIGERATION TECHNOLOGY
TK Heat Pumps use internationally-recognized rotary compressors with a titanium coaxial heat exchangers to ensure low-energy consumption while sustaining the highest in performance throughput. The technology in these heat pumps allows one to decrease noise levels and achieve a high COP (coefficient of performance) contributing to significant energy savings.
DIGITAL THERMOSTAT
The setting of functions is intuitive and the temperature detection is accurate, resolution 0.1/0.2°F. The setting range is 0°-35°C (32°F-95°F) and there is a closed loop temperature control system with high accuracy and extremely tight differential (0.5°C/1°F). Displayed temperature is in °C or °F and there are security alarms. Possibility to monitor the chiller even remotely, degree of protection IP24.
EFFICIENT DESIGN
The unit is characterized by a solid structure and was designed to provide maximum oxidation protection–great for use with salt-water.
UNIQUE FEATURES
TK Heat Pumps are also suitable suitable for many industrial applications.
Technical Specifications
Recommended Aquarium Size
please contact us for specific sizing
Horsepower
2 HP
Maximum Pressure
29 psi
Minimum Flow Rate
793 gallons per hour
Maximum Flow Rate
1,321 gallons per hour
In/Out Water Connection
1.5″ tube diameter
Cooling Power
5.8 kilowatts (kW)
Power Supply
240-volts, 60Hz – 1 phase / 6.7 Amps
Required Breaker
40 Amp
Gas/Refrigerant
R410A
Power Consumption (Cooling)
2,030 watts – 6,930 BTU/hr
Power Consumption (Heating)
1,500 watts – 5,120 BTU/hr
Working Modes
Cool, Heat
Weight
174.17 lbs (79 kg)
Dimensions
26.18″ x 28.54″ x 32.56″
Product code: 7123Item No. CH-TK5K
