Description

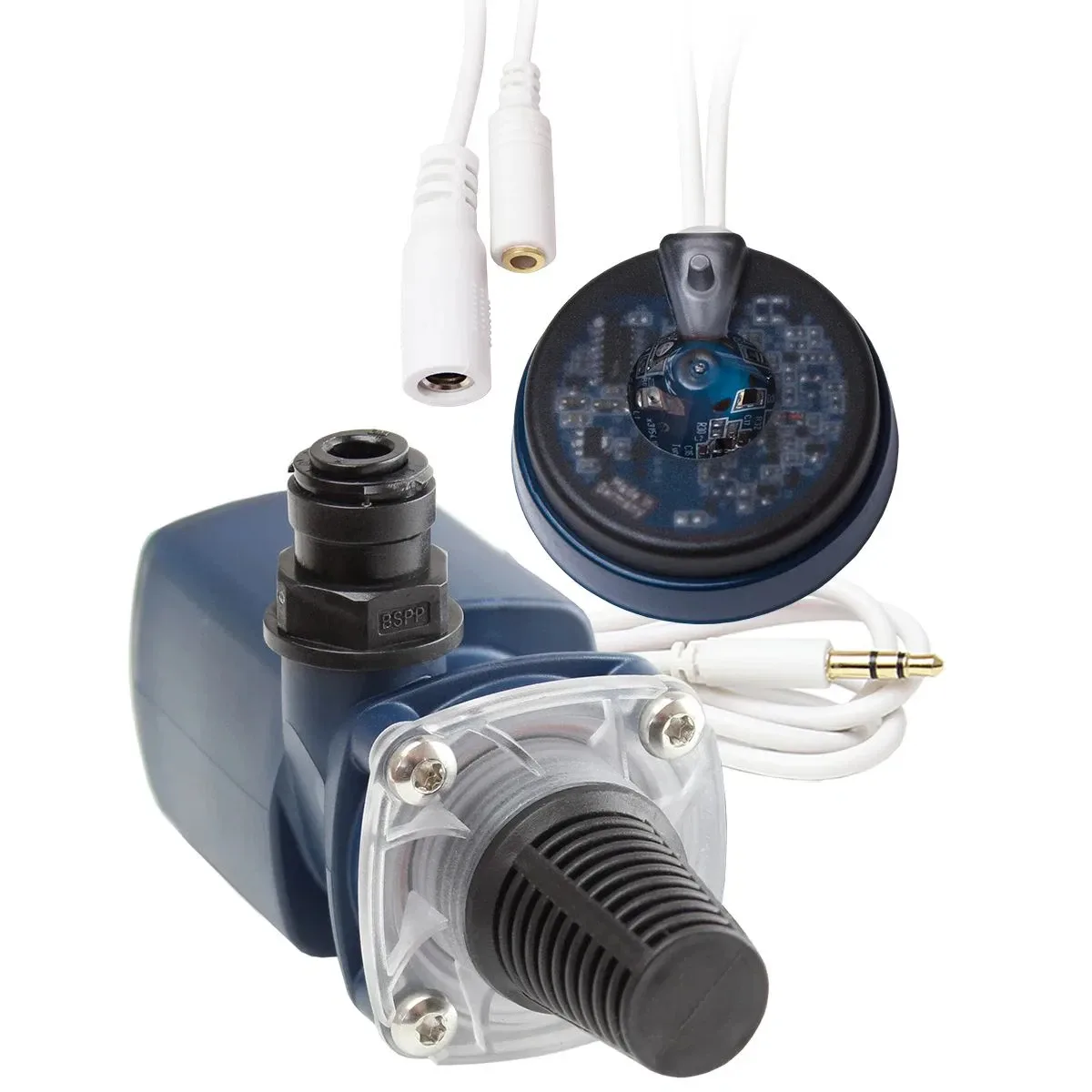

Tunze Osmolator 3 Nano
Simple and reliable water level controller for aquarium systems up to approx. 250 liters
Compact all-in-one design
Plug & Play – all required components ready for installation
Includes durable high-tech dosing pump
Maximum delivery head: 3.0 m (9.84′)
Description
The new TUNZE® Osmolator® 3 nano builds on decades of proven technology and has been further optimized in numerous details. The result: even greater operational reliability, ease of use and durability.The Osmolator® 3 nano is a simple and safe device with just one sensor for maintaining a constant water level in aquarium systems up to approx. 250 liters (66 US gal.), can be placed in cabinet filter systems or directly on the edge of the aquarium. The sensor works on glass panes up to 12 mm (1/2”) . The hose holder holds up to 22 mm (0.87”) .Scope of delivery: ready to install with 12V power supply, low-voltage dosing pump, 3 m hose, hose holder, magnet holder up to 12 mm and protective cover for the sensor.Technical specifications :SensorRated input voltage: 12 V DC SELVPower consumption during measuring operation: 0.7 WPower consumption during pump operation: 5 WOperating ambient temperature: 15–45°C (59–113°F)Operating water temperature: 0–35°C (32–95°F)Detection accuracy: 0.5 mm (0.02″)The actual water level fluctuation depends on the aquarium volume and pump performance.PumpPower supply: 3P from sensorMaximum flow rate: 160 L/h (42.3 US gal./h)Maximum delivery head: 3.0 m (9.84′)Power supplyRated input voltage: 100–240 VRated input frequency: 50–60 HzRated input current: 0.5–0.25 ArmsOutput voltage: 12 V DCRated output current: 1.5 AMinimum refill container openingWith standard connector: 75 mm (2.95″)With short tube connector 5030.201: 58 mm (2.28″)Suitable glass thicknessSensor: up to 12 mm (0.47″)Tube holder: up to 22 mm (0.87″)
