Description

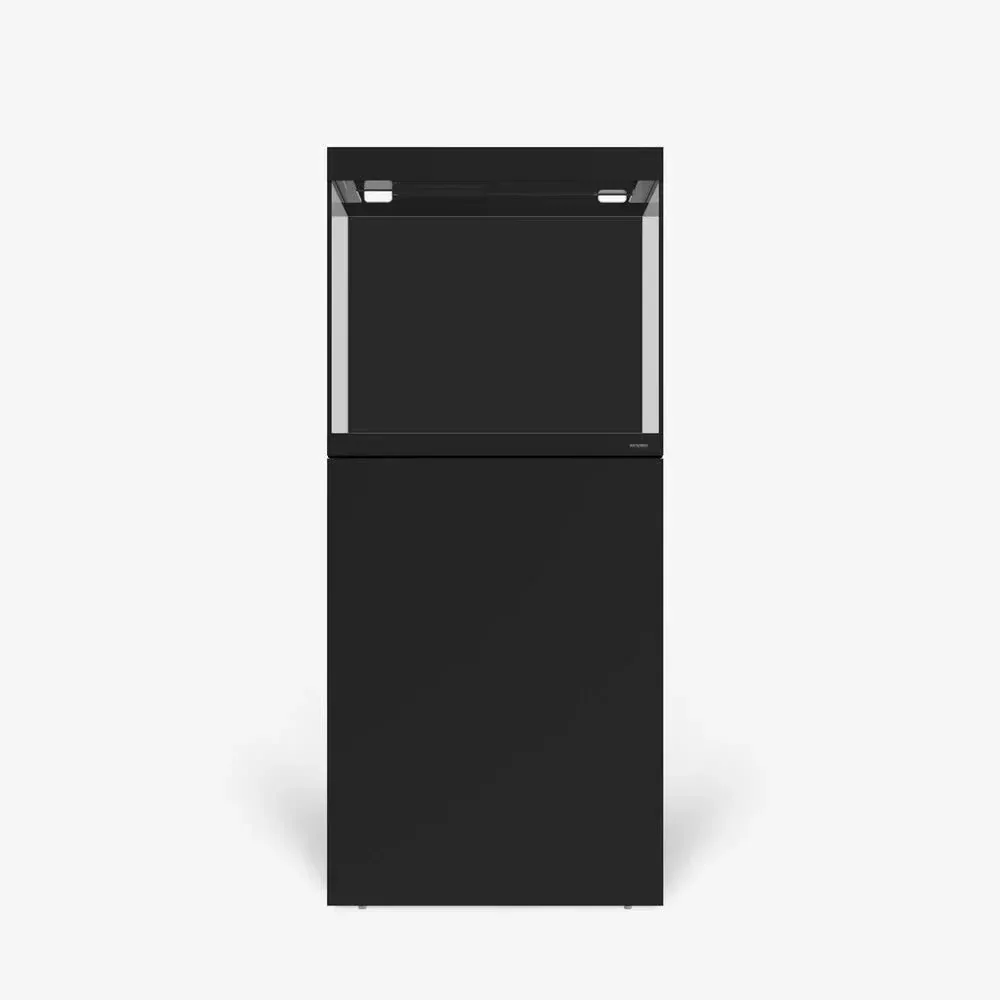

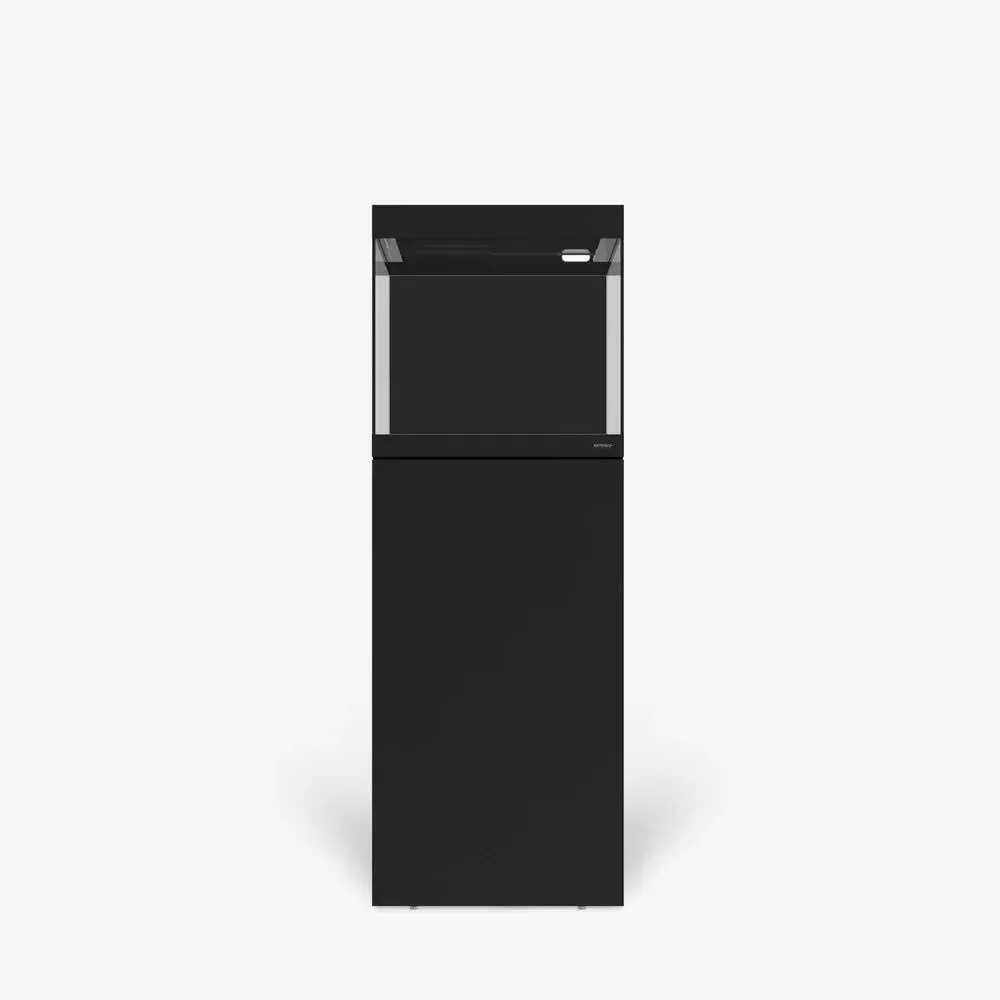

The EDEN series delivers elegantly simple freshwater and planted aquarium setups. These thoughtfully designed aquariums are perfect for low- to mid-tech planted environments. Ultra-Clear glass, quality cabinetry, and natural aesthetics make EDEN tanks an ideal canvas for aquascaping.
Product Model
EDEN 20
EDEN 30
EDEN 40
System
System Length
450mm/17.7″
600mm/23.6″
800mm/31.5″
System Width
450mm/17.7″
400mm/15.7″
400mm/15.7″
System Height (with Cabinet)
1,260mm/49.6″
1,360mm/53.5″
1,360mm/53.5″
Total System Weight
41 kg/90 lbs
56 kg/123 lbs
69 kg/152 lbs
Aquarium
Dimensions
450 x 450 x 450mm
600 x 400 x 550mm
800 x 400 x 550mm
17.7″ × 17.7″ × 17.7″
23.6″ × 15.7″ × 21.7″
31.5″ × 15.7″ × 21.7″
Aquarium Volume
77 L/20.2 gals
111 L/29.4 gals
150 L/39.5 gals
Aquarium Weight
20 kg/44 lbs
31 kg/68 lbs
38 kg/84 lbs
Glass Thickness
6mm (1/4″)
8mm (5/16″)
8mm (5/16″)
Glass Material
Ultra-clear Low Iron glass
Transmittance
91%
Joints
Regular 90°
Tank Lid
5mm Black Glass
Max Water Level
390mm (15.4″)
488mm (19.2″)
488mm (19.2″)
Max LED Lighting Length
436mm (17.2″)
582mm (22.9″)
782mm (30.8″)
Min LED Lighting Length
388mm (15.2″)
534mm (21″)
734mm (28.9″)
Max LED Lighting Thickness
27mm (1.1″)
27mm (1.1″)
27mm (1.1″)
Max Canister Filter Piping
DN20 (ID: 20mm OD: 25mm)
DN20 (ID: 20mm OD: 25mm)
DN20 (ID: 20mm OD: 25mm)
Vinyl on Rear Glass
Black for BLK, White for WHT and ASP
Silicone Color
Black for BLK, Clear for WHT and ASP
Top Banding Width
80mm (3.1″)
Bottom Banding Width
40mm (1.5″)
EVA Mat (Black/White)
x 1
LED
Lighting
LED Lighting for Freshwater
FLED 17
FLED 21
FLED 30
Length
416mm (16.4″)
562mm (22.1″)
762mm (30″)
Width
68mm (2.7″)
68mm (2.7″)
68mm (2.7″)
Height
10mm (2/5″)
10mm (2/5″)
10mm (2/5″)
Wattage
Max.32W
Max.40W
Max.50W
LED – White
14
21
28
LED – RGB
14
21
28
Luminous flux (lm)
2,080
2,605
3,250
Power Adapter
24V, 1.75A (US)
24V, 1.75A (US)
24V, 2.2A (US)
Universal Input Range
100 to 420 VAC / 50-60Hz
Total Cable Length
4,300mm (169.3″)
Material
Anodized Aluminum Alloy
Cabinet
Cabinet Model
PB 1818
PB 2416
PB 3216
Cabient Dimensions
450 x 450 x 810mm
600 x 400 x 810mm
800 x 400 x 810mm
17.7″×17.7″×31.9″
23.6″×15.7″×31.9″
31.5″×15.7″×31.9″
Cabinet Material
18mm PVC Laminated Wood Oriented Strand Board
Cabinet Weight
21 kg/46 lbs
25 kg/55 lbs
31 kg/68 lbs
Cabinet Color
WHT-White, BLK-Black, ASP-Aspen
Product Model
EDEN X 60
EDEN X 80
EDEN X 80 PENINSULA
System
System Length
900mm/35.4″
1,200mm/47.2″
1,200mm/47.2″
System Width
500mm/19.7″
500mm/19.7″
500mm/19.7″
System Height (with Cabinet)
1,480mm/58.3″
1,480mm/58.3″
1,480mm/58.3″
Total System Weight
–
–
–
Aquarium
Dimensions
900 x 500 x 580mm
1,200 x 500 x 580mm
1,200 x 500 x 580mm
35.4″ × 19.7″ × 22.8″
47.2″ × 19.7″ × 22.8″
47.2″ × 19.7″ × 22.8″
Aquarium Volume
225 L/59 gals
302 L/80 gals
302 L/80 gals
Aquarium Weight
59 kg/130 lbs
78 kg/172 lbs
78 kg/172 lbs
Glass Thickness
10mm (2/5″)
10mm (2/5″)
10mm (2/5″)
Glass Material
Ultra-clear Low Iron glass
Transmittance
91%
Joints
Regular 90°
Tank Lid
5mm Black Glass
Max Water Level
514mm (20.2″)
512mm (20.2″)
512mm (20.2″)
Max LED Lighting Length
878mm (34.6″)
1,178mm (46.4″)
1,178mm (46.4″)
Min LED Lighting Length
790mm (31.1″)
1,090mm (42.9″)
1,090mm (42.9″)
Max LED Lighting Thickness
27mm (1.1″)
27mm (1.1″)
27mm (1.1″)
Max Canister Filter Piping
DN20 (ID: 20mm OD: 25mm)
DN20 (ID: 20mm OD: 25mm)
DN20 (ID: 20mm OD: 25mm)
Vinyl on Rear Glass
Black for BLK, White for WHT and ASP
Silicone Color
Black for BLK, Clear for WHT and ASP
Top Banding Width
80mm (3.1″)
Bottom Banding Width
40mm (1.5″)
EVA Mat (Black/White)
x 1
LED
Lighting
LED Lighting for Freshwater
FLED 34
FLED 46
FLED 46
Length
858mm (33.8″)
1,158mm (45.6″)
1,158mm (45.6″)
Width
92mm (3.6″)
92mm (3.6″)
92mm (3.6″)
Height
14mm (9/16″)
14mm (9/16″)
14mm (9/16″)
Wattage
Max.62W
Max.80W
Max.80W
LED – White
28
42
42
LED – RGB
42
42
42
Luminous flux (lm)
4,030
5,200
5,200
Power Adapter
24V, 2.75A (US)
24V, 4A (US)
24V, 4A (US)
Universal Input Range
100 to 420 VAC / 50-60Hz
Total Cable Length
4,300mm (169.3″)
Material
Anodized Aluminum Alloy
Cabinet
Cabinet Model
OSB 3620
OSB 4820
OSB 4820D
Dimensions
900 x 500 x 900mm
1,200 x 500 x 900mm
1,200 x 500 x 900mm
35.4″ × 19.7″ × 35.4″
47.2″ × 19.7″ × 35.4″
47.2″ × 19.7″ × 35.4″
Cabinet Framework
Anti-corrosion Aluminum Alloy
–
Door Panels
18mm PVC Laminated Wood Oriented Strand Board
Side Panels
Bottom Panels
Back Panels
Cabinet Weight
–
–
–
Color
WHT-White, BLK-Black, ASP-Aspen
WHT-White, BLK-Black
Product Model
EDEN X 105.4
EDEN X 145.5
EDEN X 175.6
System
System Length
1,223mm/48.1″
1,536mm/60.5″
1,836mm/72.3″
System Width
643mm/25.3″
643mm/25.3″
643mm/25.3″
System Height (with Cabinet)
1,527mm/60.1″
1,577mm/62.1″
1,577mm/62.1″
Total System Weight
151 kg/333 lbs
205 kg/452 lbs
240 kg/529 lbs
Aquarium
Dimensions
1,223 x 643 x 600mm
1,536 x 643 x 650mm
1,836 x 643 x 650mm
48.1″ × 25.3″ × 23.6″
60.5″ × 25.3″ × 25.6″
72.3″ × 25.3″ × 25.6″
Aquarium Volume
386 L/102 gals
529 L/140 gals
630 L/167 gals
Aquarium Weight
107 kg/236 lbs
148 kg/326 lbs
180 kg/397 lbs
Ultraclear Front & Sides
10mm (2/5″)
12mm (1/2″)
12mm (1/2″)
Bottom Glass
12mm (1/2″)
12mm (1/2″)
15mm (3/5″)
Regular Braced-braced Top
10mm (2/5″)
10mm (2/5″)
10mm (2/5″)
Glass Material
Ultra-clear Low Iron glass
Transmittance
91%
Mitered Joints
45-degrees
Tank Lid
5mm Black Glass
Max Water Level
515mm (20.3″)
565mm (22.2″)
562mm (22.1″)
Max LED Lighting Length
1,201mm (47.3″)
1,510mm (59.4″)
1,810mm (71.3″)
Min LED Lighting Length
1,112mm (43.8″)
1,421mm (55.9″)
1,721mm (67.8″)
Max LED Lighting Thickness
42mm (1.7″)
42mm (1.7″)
42mm (1.7″)
Max Canister Filter Piping
DN32 (ID: 32mm OD: 40mm)
DN32 (ID: 32mm OD: 40mm)
DN32 (ID: 32mm OD: 40mm)
Vinyl on Rear Glass
Black for BLK, White for WHT
Silicone Color
Black for BLK, Clear for WHT
Top Banding Width
85mm (3.3″)
Bottom Banding Width
40mm (1.5″)
EVA Mat (Black/White)
x 1
LED
Lighting
LED Lighting for Freshwater
FLED 100
FLED 120
FLED 140
Length
1180mm (46.5″)
1,490mm (58.7″)
1,790mm (70.5″)
Width
92mm (3.6″)
92mm (3.6″)
92mm (3.6″)
Height
10mm (2/5″)
10mm (2/5″)
10mm (2/5″)
Wattage
Max.50W x 2
Max.60W x 2
Max.70W x 2
LED – White
56
84
84
LED – RGB
70
84
112
Luminous flux (lm)
6,120
7,200
8,350
Power Adapter
24V, 5.2A (US)
24V, 6.35A (US)
24V, 6.35A (US)
Universal Input Range
100 to 420 VAC / 50-60Hz
Total Cable Length
4,300mm (169.3″)
Material
Anodized Aluminum Alloy
Marine-
Shield
Cabinet
Cabinet Model
MSII 4825
MSII 6025
MSII 7225
Cabinet Dimensions
1,223 x 643 x 927mm
1,536 x 643 x 927mm
1,836 x 643 x 927mm
48.2″ × 25.3″ × 36.5″
60.5″ × 25.3″ × 36.5″
72.3″ × 25.3″ × 36.5″
Sump Compartment
(Int. Dimensions)
1182 x 549 x 848mm
1,495 x 541 x 848mm
1,795 x 541 x 848mm
46.5″ × 21.6″ × 33.4″
58.9″ × 21.3″ × 33.4″
70.7″ × 21.3″ × 33.4″
Cabinet Framework
Anti-corrosion Aluminum Alloy
Door Panels
Double-sided 18mm PET laminated Wood Oriented Strand Board
Side Panels
Aluminum Composite
Bottom Panels
10mm PVC Board
Back Panels
5mm PVC Board
Cabinet Weight
44 kg/97 lbs
57 kg/126 lbs
60 kg/132 lbs
Cabinet Color
WHT-White, BLK-Black
