Description
INFINIA FRAG
Product Model
INFINIA
FRAG 125.4
INFINIA
FRAG 155.5
INFINIA
FRAG 175.6
System
Height with Cabinet
1,337mm/52.6″
1,337mm/52.6″
1,337mm/52.6″
Total Volume with ATO
469 L/123.8 gals
585 L/154.6 gals
690 L/182.2 gals
Total System Weight
175 kg/386 lbs
211 kg/465 lbs
232 kg/511 lbs
Display
Tank
Tank Dimensions
1,223 x 643 x 410mm
1,536 x 643 x 410mm
1,836 x 643 x 410mm
48.2″ × 25.3″ × 16.1″
60.5″ × 25.3″ × 16.1″
72.3″ × 25.3″ × 16.1″
Glass Thickness
12mm (1/2″)
12mm (1/2″)
12mm (1/2″)
Aquarium Volume
295 L/78 gals
372 L/98.4 gals
446 L/117.9 gals
Aquarium Weight
82 kg/181 lbs
98 kg/216 lbs
113 kg/249 lbs
Glass Material
Ultra-clear Low Iron glass (front and sides)
Transmittance
91%
In-cabinet
Sump
Dimensions
838 x 475 x 380mm
965 x 475 x 380mm
1,143 x 475 x 380mm
34″ × 18.7″ × 15″
42″ × 18.7″ × 15″
45″ × 18.7″ × 15″
Sump Volume
140 L/37.1 gals
162 L/42.8 gals
192 L/50.8 gals
Sump Weight
40 kg/88 lbs
45 kg/99 lbs
48 kg/106 lbs
Glass Thickness
8mm (5/16″)
Refugium Chamber
(Max Int. Dimensions)
180 x 400mm
250 x 400mm
300 x 400mm
7.1″ × 15.8″
9.8″ × 15.8″
11.8″ × 15.8″
Refugium Chamber
(Min Int. Dimensions)
140 x 400mm
200 x 400mm
230 x 400mm
5.5″ × 15.8″
7.9″ × 15.8″
9.1″ × 15.8″
Skimmer Chamber
(Int. DIM, w/o Refugium)
416 x 400mm
528 x 400mm
676 x 400mm
16.4″ × 15.8″
20.8″ × 15.8″
26.6″ × 15.8″
Skimmer Chamber
(Int. DIM, with Min Refugium)
271 x 400mm
323 x 400mm
441 x 400mm
10.7″ × 15.8″
12.7″ × 15.8″
17.4″ × 15.8″
Skimmer Chamber
(Int. DIM, with Max Refugium)
231 x 400mm
273 x 400mm
371 x 400mm
9.1″ × 15.8″
10.7″ × 15.8″
14.6″ × 15.8″
Pump Chamber
(Int. Dimensions)
135x 400mm
150 x 400mm
180 x 400mm
5.3″ × 15.8″
5.9″ × 15.8″
7.1″ × 15.8″
ATO
Tank
ATO Dimensions
203 x 475 x 380mm
305 x 475 x 380mm
8″ × 18.7″ × 15″
12″ × 18.7″ × 15″
ATO Volume
33 L/8.7 gals
51 L/13.4 gals
ATO Weight
9 kg/20 lbs
11 kg/24 lbs
11 kg/24 lbs
Glass Thickness
6mm (1/4″)
6mm (1/4″)
Plumbing
Main Drain
DN32 (ID: 32mm OD: 40mm)
Emergency Overflow
DN32 (ID: 32mm OD: 40mm)
Pump Return
DN25 (ID: 25mm OD: 32mm)
Return Hose
lD: 25mm OD: 31mm
Nozzle(s) (Thread Size)
2 x M25 (25mm)
Manifold Kit
Manifold 15 (Single outlet)
Filtration
Filter Socks
2 x 180mm/7″ FELT
Filter Sock Silencers
2 x 180mm/7″
Interchangable with Roller Filter
YES
Marine-
Shield
Cabinet
Cabinet Model
MSII 4825
MSII 6025
MSII 7225
Cabinet Dimensions
1,223 x 643 x 927mm
1,536 x 643 x 927mm
1,836 x 643 x 927mm
48.2″ × 25.3″ × 36.5″
60.5″ × 25.3″ × 36.5″
72.3″ × 25.3″ × 36.5″
Sump Compartment
(Int. Dimensions)
1182 x 549 x 849mm
1,495 x 541 x 849mm
1,795 x 541 x 849mm
46.5″ × 21.6″ × 33.4″
58.9″ × 21.3″ × 33.4″
70.7″ × 21.3″ × 33.4″
Cabinet Framework
Anti-corrosion Aluminum Alloy
Door Panels
Double-sided 18mm PET laminated Wood Oriented Strand Board
Side Panels
Aluminum Composite
Bottom Panels
10mm PVC Board
Back Panels
5mm PVC Board
Cabinet Weight
44 kg/97 lbs
57 kg/126 lbs
60 kg/132 lbs
Cabinet Color

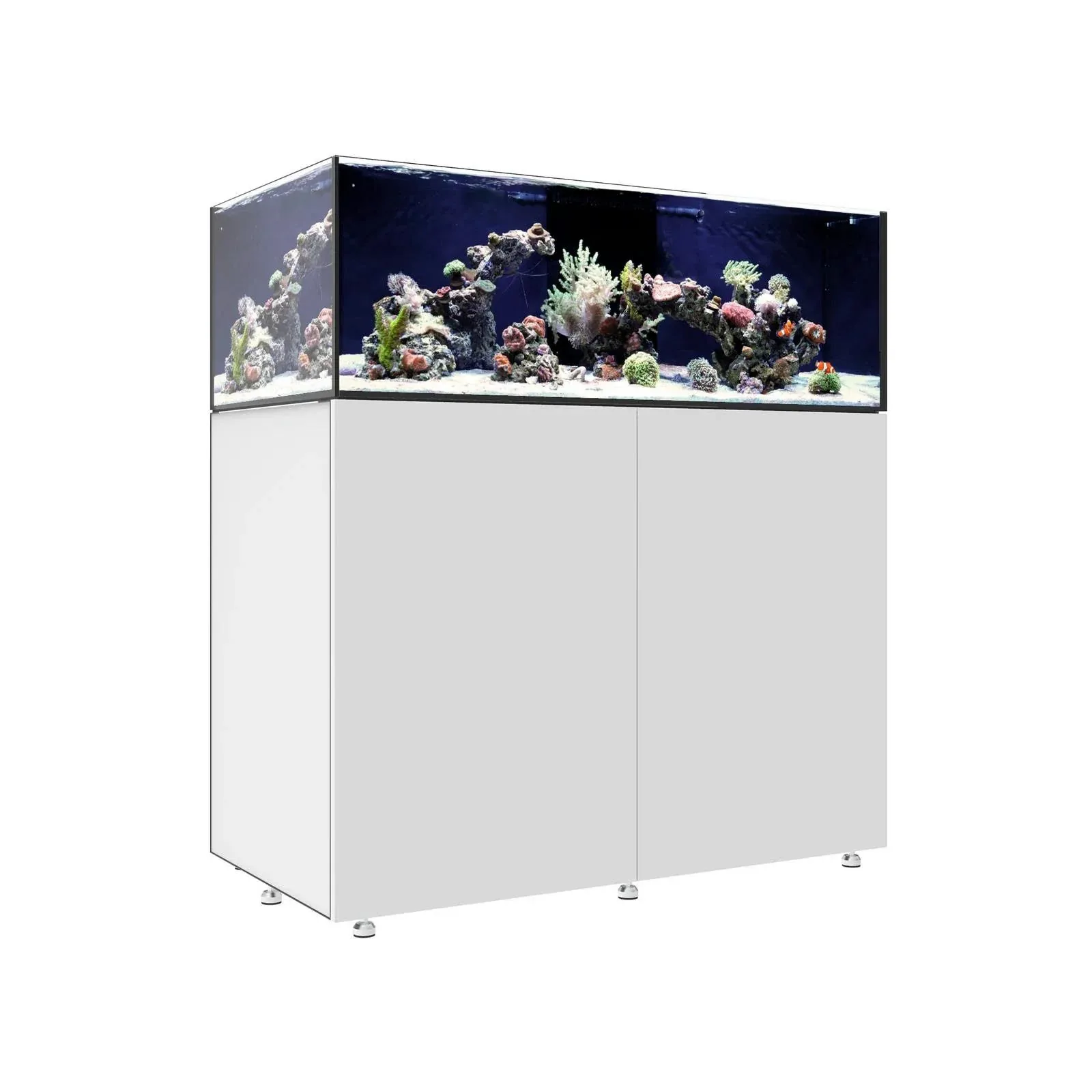

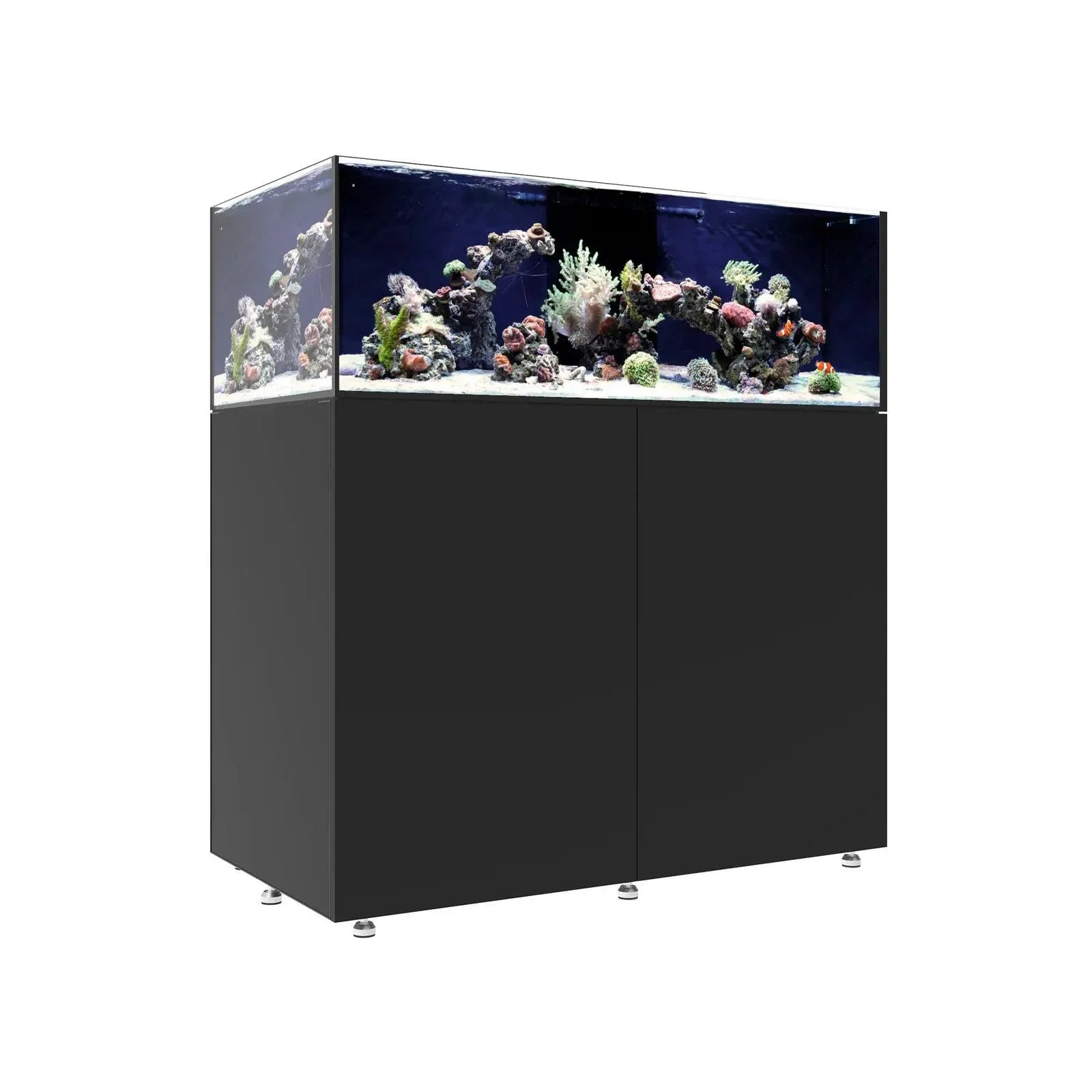

WHT-White, BLK-Black
INFINIA REEF
Product Model
INFINIA
REEF 150.4
INFINIA
REEF 190.5
INFINIA
REEF 230.6
System
Height with Cabinet
1,477mm/58.2″
1,502mm/59.1″
1,527mm/60.1″
Total Volume with ATO
573 L/151.3 gals
730 L/192.8 gals
875 L/231.2 gals
Total System Weight
191 kg/421 lbs
259 kg/571 lbs
330 kg/728 lbs
Display
Tank
Tank Dimensions
1,223 x 643 x 550mm
1,536 x 643 x 575mm
1,836 x 643 x 600mm
48.2″ × 25.3″ × 21.7″
60.5″ × 25.3″ × 22.6″
72.3″ × 25.3″ × 23.6″
Glass Thickness
12mm (1/2″)
15mm (3/5″)
19mm (3/4″)
Aquarium Volume
399 L/105.5 gals
517 L/136.6 gals
632 L/167 gals
Aquarium Weight
98 kg/216 lbs
146 kg/322 lbs
211 kg/465 lbs
Glass Material
Ultra-clear Low Iron glass (front and sides)
Transmittance
91%
In-cabinet
Sump
Dimensions
838 x 475 x 380mm
965 x 475 x 380mm
1,143 x 475 x 380mm
33″ × 18.7″ × 15″
38″ × 18.7″ × 15″
45″ × 18.7″ × 15″
Sump Volume
140 L/37.1 gals
162 L/42.8 gals
192 L/50.8 gals
Sump Weight
40 kg/88 lbs
45 kg/99 lbs
48 kg/106 lbs
Glass Thickness
8mm (5/16″)
Refugium Chamber
(Max Int. Dimensions)
180 x 400mm
250 x 400mm
300 x 400mm
7.1″ × 15.8″
9.8″ × 15.8″
11.8″ × 15.8″
Refugium Chamber
(Min Int. Dimensions)
140 x 400mm
200 x 400mm
230 x 400mm
5.5″ × 15.8″
7.9″ × 15.8″
9.1″ × 15.8″
Skimmer Chamber
(Int. DIM, w/o Refugium)
416 x 400mm
528 x 400mm
676 x 400mm
16.4″ × 15.8″
20.8″ × 15.8″
26.6″ × 15.8″
Skimmer Chamber
(Int. DIM, with Min Refugium)
271 x 400mm
323 x 400mm
441 x 400mm
10.7″ × 15.8″
12.7″ × 15.8″
17.4″ × 15.8″
Skimmer Chamber
(Int. DIM, with Max Refugium)
231 x 400mm
273 x 400mm
371 x 400mm
9.1″ × 15.8″
10.7″ × 15.8″
14.6″ × 15.8″
Pump Chamber
(Int. Dimensions)
135x 400mm
150 x 400mm
180 x 400mm
5.3″ × 15.8″
5.9″ × 15.8″
7.1″ × 15.8″
ATO
Tank
ATO Dimensions
203 x 475 x 380mm
305 x 475 x 380mm
8″ × 18.7″ × 15″
12″ × 18.7″ × 15″
ATO Volume
33 L/8.7 gals
51 L/13.4 gals
ATO Weight
9 kg/20 lbs
11 kg/24 lbs
11 kg/24 lbs
Glass Thickness
6mm (1/4″)
6mm (1/4″)
Plumbing
Main Drain
DN32 (ID: 32mm OD: 40mm)
Emergency Overflow
DN32 (ID: 32mm OD: 40mm)
Pump Return
DN25 (ID: 25mm OD: 32mm)
Return Hose
lD: 25mm OD: 31mm
Nozzle(s) (Thread Size)
2 x M25 (25mm)
Manifold Kit
Manifold 15 (Single outlet)
Filtration
Filter Socks
2 x 180mm/7″ FELT
Filter Sock Silencers
2 x 180mm/7″
Interchangable with Roller Filter
YES
Marine-
Shield
Cabinet
Cabinet Model
MSII 4825
MSII 6025
MSII 7225
Cabinet Dimensions
1,223 x 643 x 927mm
1,536 x 643 x 927mm
1,836 x 643 x 927mm
48.2″ × 25.3″ × 36.5″
60.5″ × 25.3″ × 36.5″
72.3″ × 25.3″ × 36.5″
Sump Compartment
(Int. Dimensions)
1182 x 549 x 849mm
1,495 x 541 x 849mm
1,795 x 541 x 849mm
46.5″ × 21.6″ × 33.4″
58.9″ × 21.3″ × 33.4″
70.7″ × 21.3″ × 33.4″
Cabinet Framework
Anti-corrosion Aluminum Alloy
Door Panels
Double-sided 18mm PET laminated Wood Oriented Strand Board
Side Panels
Aluminum Composite
Bottom Panels
10mm PVC Board
Back Panels
5mm PVC Board
Cabinet Weight
44 kg/97 lbs
57 kg/126 lbs
60 kg/132 lbs
Cabinet Color
WHT-White, BLK-Black
INFINIA PENINSULA
Product Model
INFINIA PENINSULA 6025
INFINIA PENINSULA 7225
System
Height with Cabinet
1,502mm/59.1″
1,527mm/60.1″
Total Volume with ATO
738 L/195.1 gals
875 L/231.2 gals
Total System Weight
271 kg/597 lbs
349 kg/769 lbs
Display
Tank
Tank Dimensions
1,536 x 643 x 575mm
1,836 x 643 x 600mm
60.5″ × 25.3″ × 22.6″
72.3″ × 25.3″ × 23.6″
Glass Thickness
15mm (3/5″)
19mm (3/4″)
Aquarium Volume
517 L/136.6 gals
632 L/167 gals
Aquarium Weight
144 kg/317 lbs
210 kg/463 lbs
Glass Material
Ultra-clear Low Iron glass (front and sides)
Transmittance
91%
In-cabinet
Sump
Dimensions
1,016 x 475 x 380mm
1,143 x 475 x 380mm
40″ × 18.7″ × 15″
45″ × 18.7″ × 15″
Sump Volume
171 L/45.1 gals
192 L/50.8 gals
Sump Weight
44 kg/97 lbs
47 kg/104 lbs
Glass Thickness
8mm (5/16″)
8mm (5/16″)
Refugium Chamber
(Max Int. Dimensions)
250 x 413mm
300 x 413mm
9.8″ × 16.3″
11.8″ × 16.3″
Refugium Chamber
(Min Int. Dimensions)
200 x 413mm
230 x 413mm
7.9″ × 16.3″
9.1″ × 16.3″
Skimmer Chamber
(Int. DIM, w/o Refugium)
546 x 413mm
673 x 413mm
21.5″ × 16.3″
26.5″ × 16.3″
Skimmer Chamber
(Int. DIM, with Min Refugium)
341 x 413mm
438 x 413mm
13.4″ × 16.3″
17.2″ × 16.3″
Skimmer Chamber
(Int. DIM, with Max Refugium)
291 x 413mm
368 x 413mm
11.5″ × 16.3″
14.5″ × 16.3″
Pump Chamber
(Int. Dimensions)
192 x 382mm
192 x 382mm
7.6″ × 15″
7.6″ × 15″
ATO
Tank
ATO Dimensions
305 x 475 x 380mm
12″ × 18.7″ × 15″
ATO Volume
51 L/13.4 gals
ATO Weight
11 kg/24 lbs
11 kg/24 lbs
Glass Thickness
6mm (1/4″)
Plumbing
Main Drain
DN32 (ID: 32mm OD: 40mm)
Emergency Overflow
DN32 (ID: 32mm OD: 40mm)
Pump Return
DN25 (ID: 25mm OD: 32mm)
Return Hose
lD: 25mm OD: 31mm
Nozzle(s) (Thread Size)
2 x M25 (25mm)
Manifold Kit
Manifold 15 (Single outlet)
Filtration
Filter Socks
2 x 180mm/7″ FELT
Filter Sock Silencers
2 x 180mm/7″
Interchangable with Roller Filter
Cabinet
Cabinet Model
ALP 6025
ALP 7225
Cabinet Dimensions
1,536 x 643 x 927mm
1,836 x 643 x 927mm
60.5″ × 25.3″ × 36.5″
72.3″ × 25.3″ × 36.5″
Sump Compartment
(Int. Dimensions)
1,410 x 543 x 785mm
1,710 x 543 x 785mm
55.5″ × 21.4″ × 30.9″
67.3″ × 21.4″ × 30.9″
Cabinet Framework
Anti-corrosion Aluminum Alloy
Door & Side Panels
18mm PVC Laminated Wood Oriented Strand Board
Bottom Panels
10mm PVC Board
Cabinet Weight
72 kg/159 lbs
81 kg/179 lbs
Cabinet Color
WHT-White, BLK-Black
