Description
Product Model
REEF LX 290.6
REEF LX 330.7
REEF LX 380.8
System
Height with Cabinet
1,577mm/62.1″
1,577mm/62.1″
1,577mm/62.1″
Total Volume with RO/ATO
1,091 L/288.3 gals
1,250 L/330.2 gals
1,450 L/383.1 gals
Total System Weight
356 kg/785 lbs
477 kg/1052 lbs
537 kg/1184 lbs
Display
Tank
Tank Dimensions
1,836 x 750 x 650mm
2,136 x 750 x 650mm
2,448 x 750 x 650mm
72.3″ × 29.5″ × 25.6″
84.1″ × 29.5″ × 25.6″
96.4″ × 29.5″ × 25.6″
Ultraclear Front & Sides
19mm (3/4″)
19mm (3/4″)
19mm (3/4″)
Bottom Glass
19mm (3/4″)
19mm (3/4″)
19mm (3/4″)
Euro-bracing Thickness
15mm (3/5″)
15mm (3/5″)
15mm (3/5″)
Aquarium Volume
808 L/213.4 gals
943 L/249 gals
1,083 L/286 gals
Aquarium Weight
266 kg/586 lbs
301 kg/664 lbs
336 kg/741 lbs
Glass Material
Ultra-clear Low Iron glass (front, sides and euro-bracing)
Transmittance
91%
In-cabinet
Sump
Dimensions
1,016 x 610 x 400mm
1,118 x 610 x 400mm
1,270 x 610 x 400mm
40″ × 24″ × 15.7″
44″ × 24″ × 15.7″
50″ × 24″ × 15.7″
Sump Volume
233 L/61.5 gals
257 L/67.8 gals
292 L/77.1 gals
Sump Weight
55 kg/121 lbs
59 kg/130 lbs
65 kg/143 lbs
Glass Thickness
8mm (5/16″)
8mm (5/16″)
8mm (5/16″)
Refugium Chamber
(Ma x Int. Dimensions)
250 x 518mm
300 x 518mm
350 x 518mm
9.8″ × 20.4″
11.8″ × 20.4″
13.8″ × 20.4″
Refugium Chamber
(Min Int. Dimensions)
200 x 518mm
230 x 518mm
250 x 518mm
7.9″ × 20.4″
9.1″ × 20.4″
9.8″ × 20.4″
Skimmer Chamber
(Int. DIM, w/o Refugium)
547 x 518mm
649 x 518mm
801 x 518mm
21.5″ × 20.4″
25.6″ × 20.4″
31.5″ × 20.4″
Skimmer Chamber
(Int. DIM, with Min Refugium)
342 x 518mm
414 x 518mm
546 x 518mm
13.5″ × 20.4″
16.3″ × 20.4″
21.5″ × 20.4″
Skimmer Chamber
(Int. DIM, with Ma x Refugium)
292 x 518mm
344 x 518mm
446 x 518mm
11.5″ × 20.4″
13.5″ × 20.4″
17.6″ × 20.4″
Pump Chamber
(Int. Dimensions)
180 x 518mm
7.1″ × 20.4″
ATO Tank
ATO Dimensions
305 x 475 x 380mm
350 x 610 x 380mm
12″ × 18.7″ × 15″
13.8″ × 24″ × 15″
ATO Volume
51 L/13.4 gals
76 L/20 gals
ATO Weight
11 kg/24 lbs
11 kg/24 lbs
15 kg/33 lbs
Glass Thickness
6mm (1/4″)
6mm (1/4″)
6mm (1/4″)
Plumbing
Main Drain
2 x DN25 (ID: 25mm OD: 32mm)
Emergency Overflow
DN32 (ID: 32mm OD: 40mm)
Pump Return
DN25 (ID: 25mm OD: 32mm)
Return Hose
lD: 32mm OD: 38mm
Nozzle(s) (Thread Size)
2 x M25 (25mm)
Filtration
Filter Socks
2 x 180mm/7″ FELT
Filter Sock Silencers
2 x 180mm/7″
Interchangable with Roller Filter
YES
SuperALU
Cabinet
Cabinet Model
ALU 7230
ALU 8430
ALU 9630
Cabinet Dimensions
1,836 x 750 x 927mm
2,136 x 750 x 927mm
2,448 x 750 x 927mm
72.3″ × 29.5″ × 36.5″
84.1″ × 29.5″ × 36.5″
96.4″ × 29.5″ × 36.5″
Sump Compartment
(Int. Dimensions)
1,641 x 672 x 785mm
1,467 x 672 x 785mm
1,700 x 672 x 785mm
64.6″×26.4″×30.9″
57.6″ × 26.4″ × 32.8″
66.9″ × 26.4″ × 32.8″
Electrical Compartment
(Int. Dimensions)
430 x 91 x 746mm
430 x 91 x 746mm
430 x 91 x 746mm
17″ × 3.6″ × 29.4″
17″ × 3.6″ × 29.4″
17″ × 3.6″ × 29.4″
Aluminum Framework
Heavy Duty Anti-corrosion Aluminum Alloy
Doors & Side Panels
Double-sided 18mm PET laminated Wood Oriented Strand Board
Bottom Panel
10mm PVC Board
Back Panels
6mm PVC Board
Cabinet Weight
90 kg/198 lbs
106 kg/234 lbs
121 kg/267 lbs

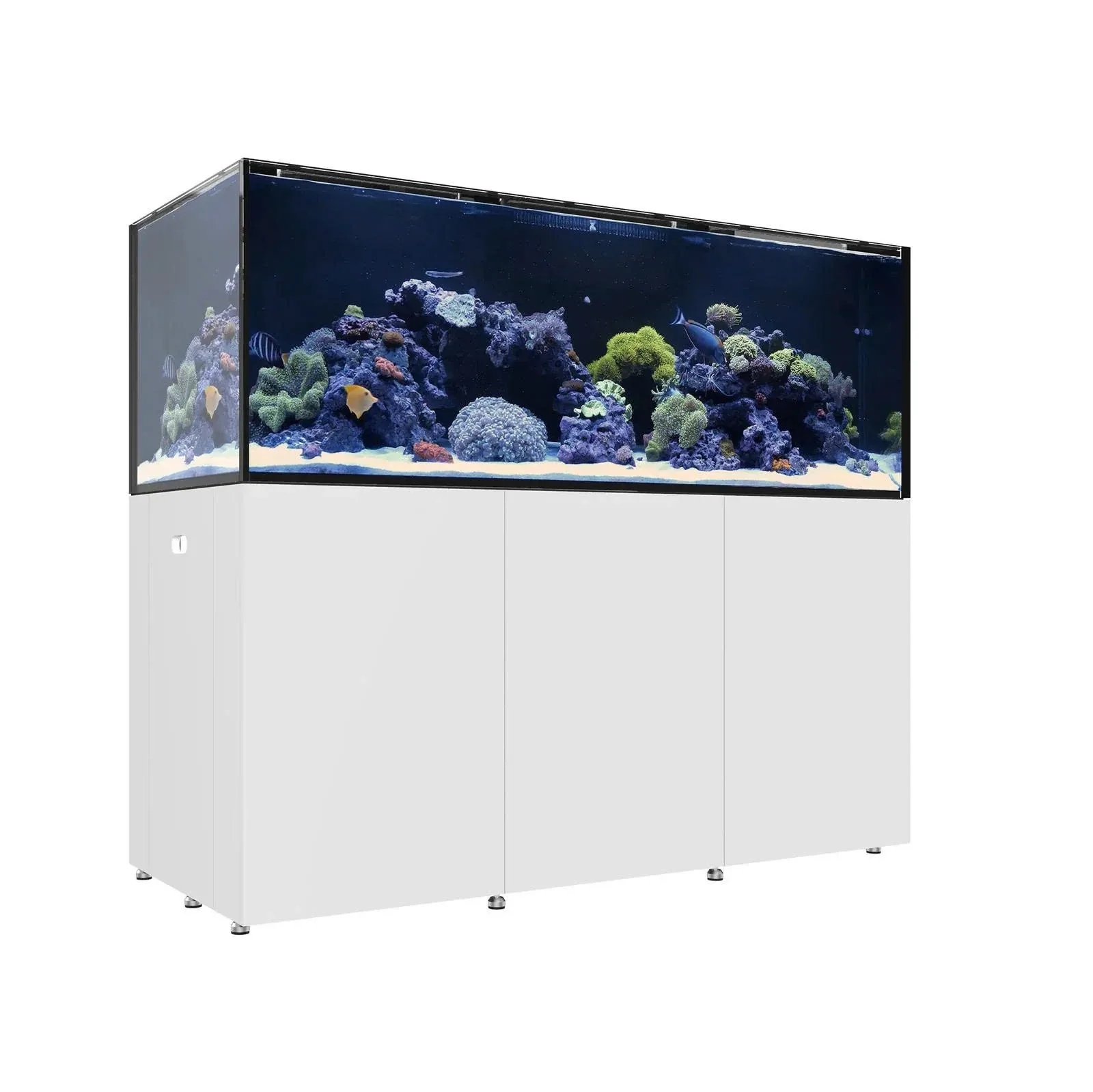

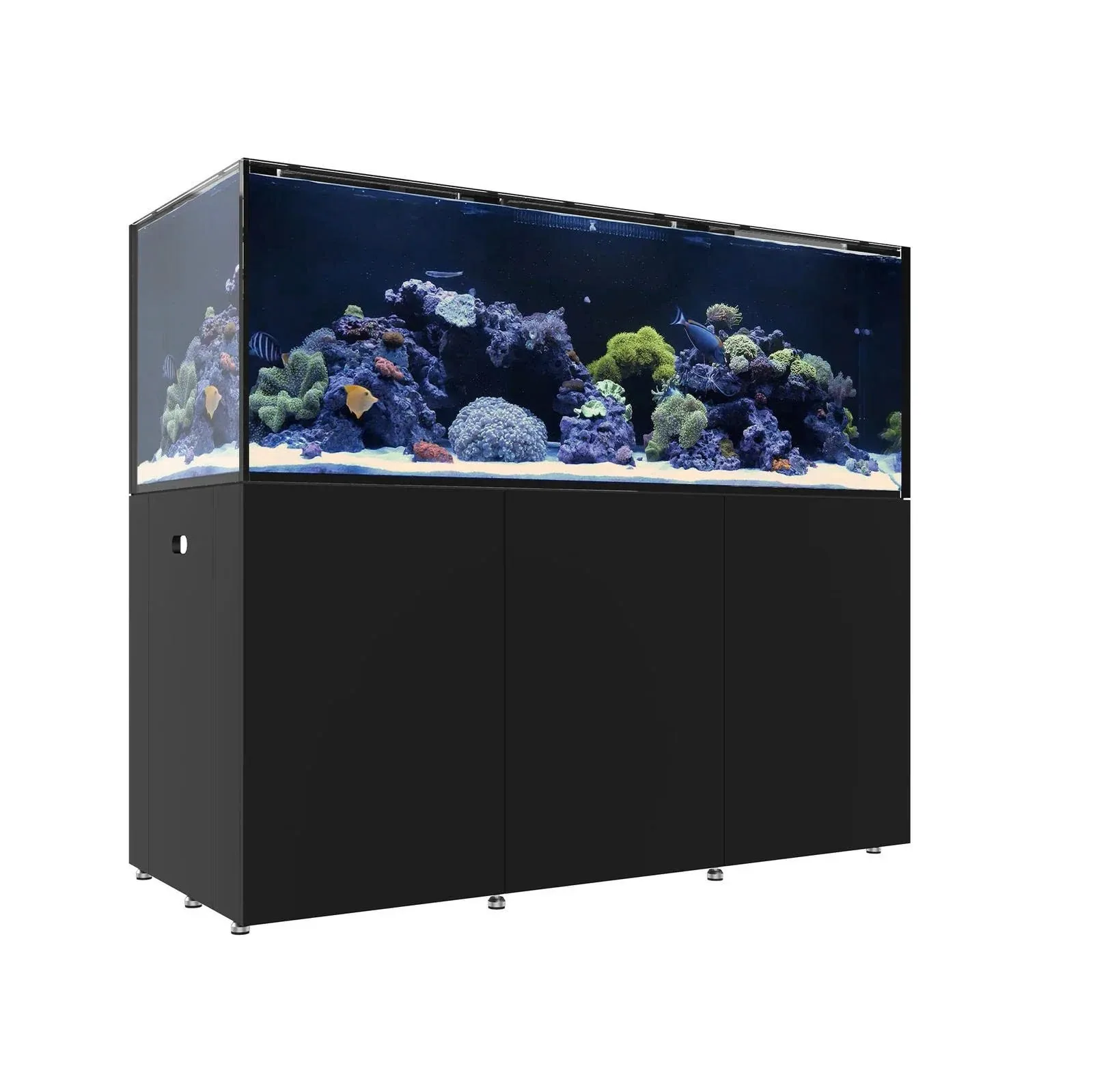

Cabinet Color
WHT-White, BLK-Black
